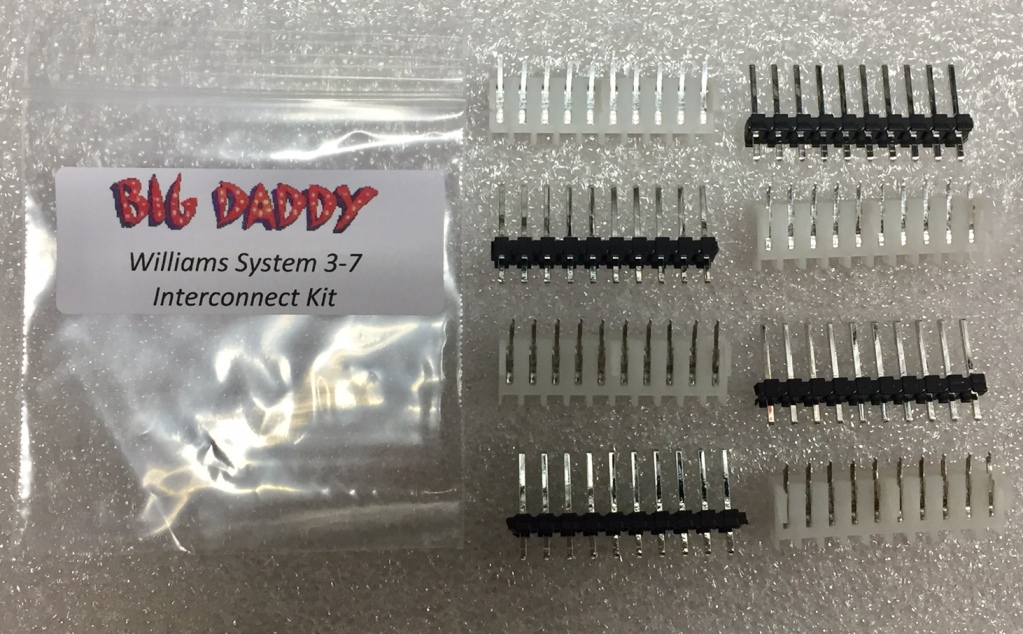

Williams games are all over 30 years old, and replacing this interconnect section will solve a lot of lock up, boot up and intermittent problems you may be having with your game. If you've ever reseated this connector and it "fixed" it, that's a red flag it's time to replace. Over time, this connector simply gets unreliable with age, dirt, dust and corrosion. The battery holder is located immediately above it too, making it a target for damage due to leaking batteries. Included in this kit are four 10 pin .156" male Molex connector pin sections and four 10 pin female bottom entry connectors. Important NOTICE! There have been some people stating these are too short.

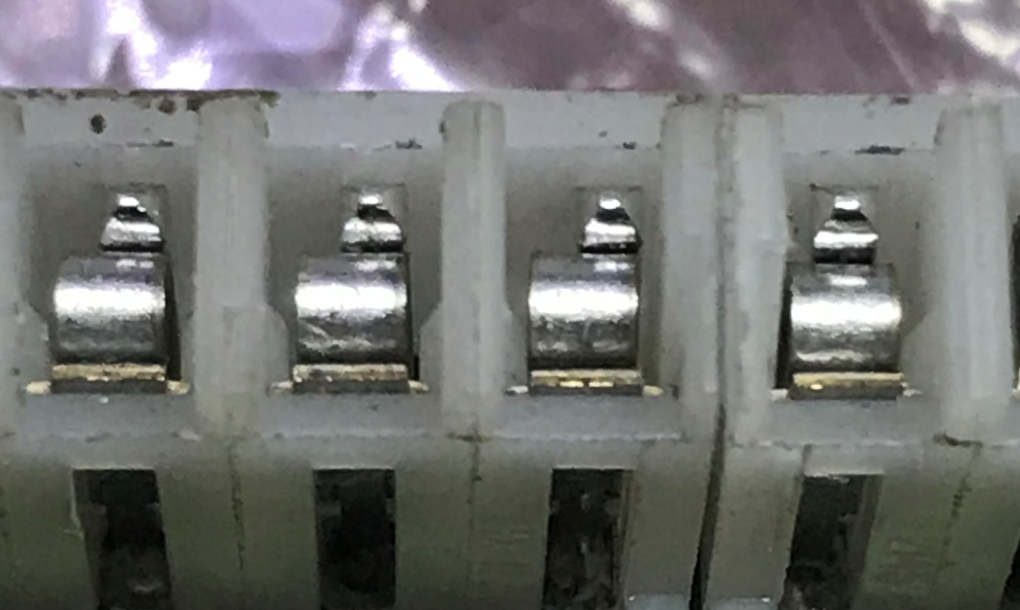

Technical notes: There are some people that think the headers I supply are too short, and they also need to be round. The Molex data sheet calls for the header to have a minimum pin insertion depth of 0.450, and these "technically" are 95% of that, however if you look at the 2nd picture in this listing, they do make a 100% connection going through the receiver. Going through more than needed does not make a better connection. The assumption could be because of the thickness of the PCB not being taken in to account. PinWiki states incorrectly that they need to be 16mm, which is what Williams originally used, but as we all know, they used what they had. Williams also used round header pins, and some people think that is also required, but for a fact Molex recommends a flat edge header for these kinds of receivers.
Non-Technical fact: I have sold this kit for over 17 years, over 1000 kits sold, and 1000+ games fixed.

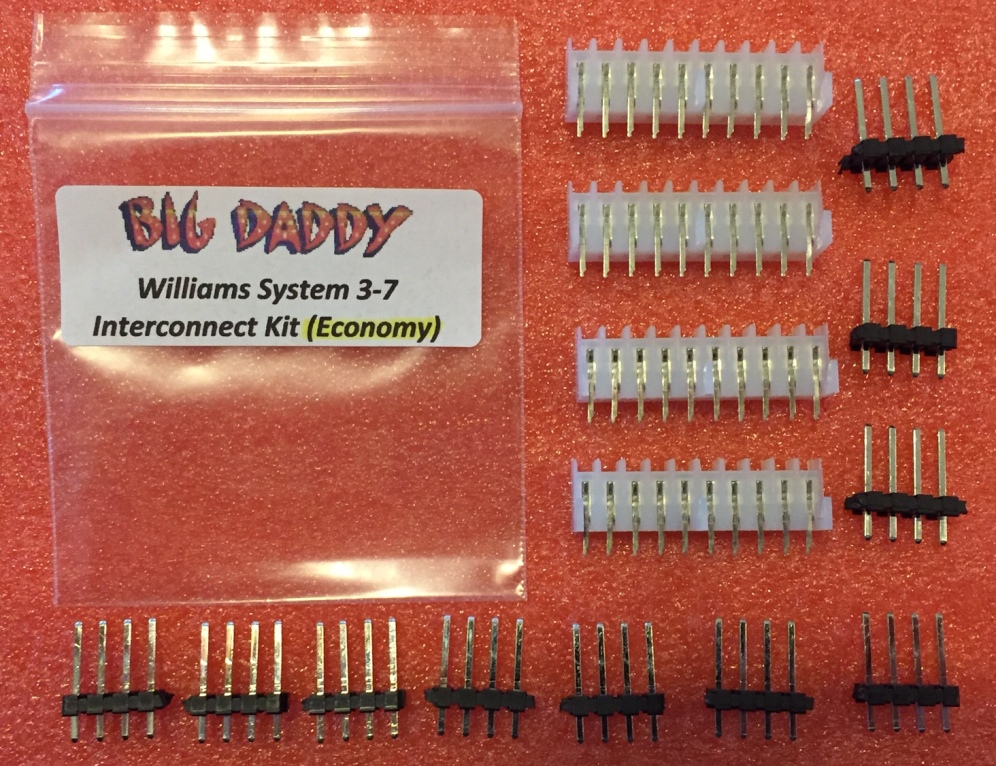

Williams games are all over 30 years old, and replacing this interconnect section will solve a lot of lock up, boot up and intermittent problems you may be having with your game. If you've ever reseated this connector and it "fixed" it, that's a red flag it's time to replace. Over time, this connector simply gets unreliable with age, dirt, dust and corrosion. The battery holder is located immediately above it too, making it a target for damage due to leaking batteries. Included in this kit are ten 4 pin .156" male Molex connector pin sections and four 10 pin female bottom entry connectors. Important NOTICE! There have been some people stating these are too short.

Technical notes: There are some people that think the headers I supply are too short, and they also need to be round. The Molex data sheet calls for the header to have a minimum pin insertion depth of 0.450, and these "technically" are 95% of that, however if you look at the 2nd picture in this listing, they do make a 100% connection going through the receiver. Going through more than needed does not make a better connection. The assumption could be because of the thickness of the PCB not being taken in to account. PinWiki states incorrectly that they need to be 16mm, which is what Williams originally used, but as we all know, they used what they had. Williams also used round header pins, and some people think that is also required, but for a fact Molex recommends a flat edge header for these kinds of receivers.
Non-Technical fact: I have sold this kit for over 17 years, over 1000 kits sold, and 1000+ games fixed.

This kit provides 2 fuses typically found on the early System 3-6 solid state pinball machines. Games vary a bit and this combination gives you enough for most. These fuses are all quality Bussman/Cooper or Littelfuse fuses

Includes:

• (2) each ¼ Amp slow blow
• (2) each 2.5 Amp slow blow
• (2) each 4 Amp fast blow
• (2) each 4 Amp slow blow
• (2) each 7-½ Amp fast blow
• (2) each 8 Amp fast blow
• (2) each 10 Amp fast blow
• (2) each 20 Amp fast blow


Game Listing:, Checkpoint, Teenage Mutant Ninja Turtles, Batman, Star Trek 25th Anniversary, Hook, Rocky and Bullwinkle, Guns N' Roses, Jurassic Park, Last Action Hero, Lethal Weapon 3, Star Wars, Tales from the Crypt, The Who’s Tommy, WWF Royal Rumble.

This kit provides 2 of fuses typically found on the early System 7 solid state pinball machines. Games vary a bit and this combination gives you enough for most. These fuses are all quality Bussman/Cooper or Littelfuse fuses

Includes:

• (2) each ¼ Amp slow blow
• (2) each 2-½ Amp slow blow
• (2) each 4 Amp fast blow
• (2) each 5 Amp slow blow
• (2) each 7 Amp slow blow
• (2) each 7-½ Amp fast blow
• (2) each 8 Amp fast blow
• (2) each 10 Amp fast blow
• (2) each 15 Amp fast blow
• (2) each 20 Amp fast blow


Game Listing:, Checkpoint, Teenage Mutant Ninja Turtles, Batman, Star Trek 25th Anniversary, Hook, Rocky and Bullwinkle, Guns N' Roses, Jurassic Park, Last Action Hero, Lethal Weapon 3, Star Wars, Tales from the Crypt, The Who’s Tommy, WWF Royal Rumble.

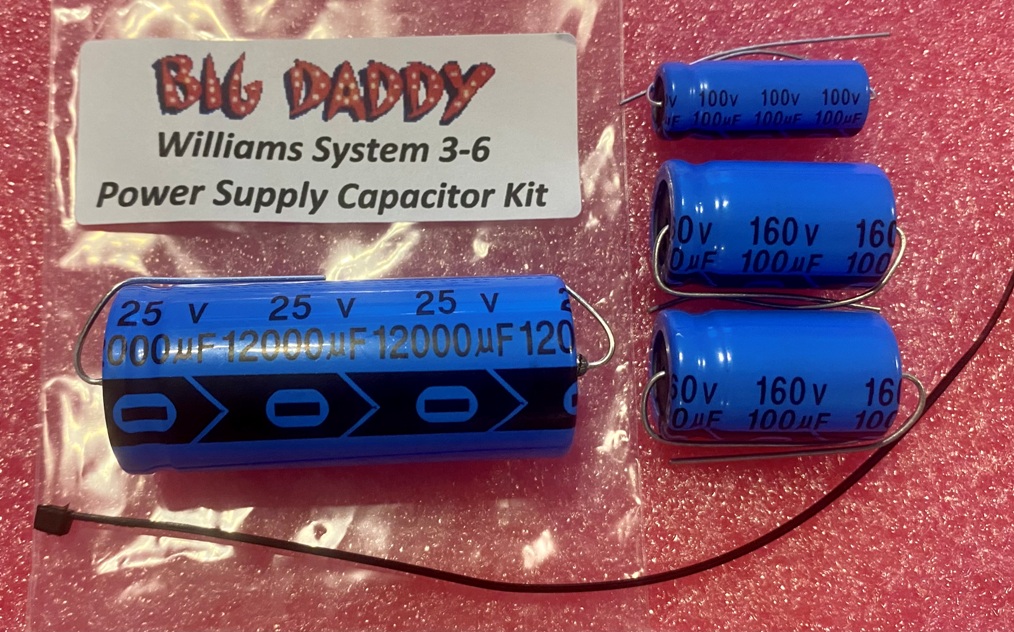

Contains all of the electrolytic caps on a Williams System 3-6 Power Supply board. Electrolytics dry out over time and are commonly known to have a 20 year life, these games are all now over 30 years old. Values used on factory boards varied and may be different, higher voltage tolerances are an improvement. Factory board is usually not marked with a part number.

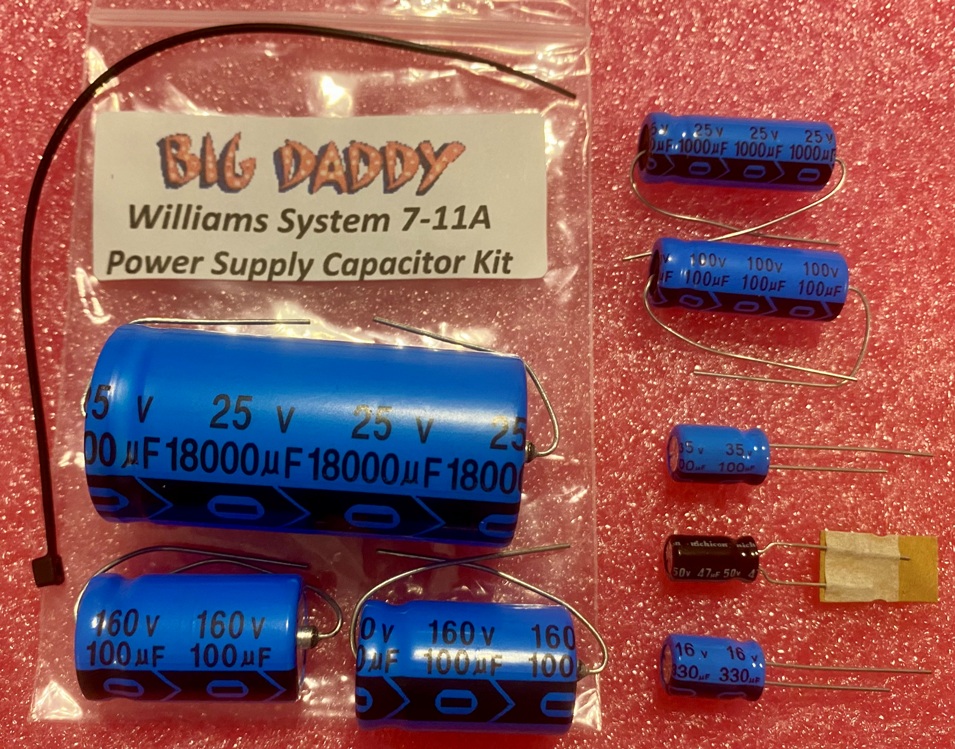

Contains all of the electrolytic caps on a Williams System 7-11A Power Supply board. Electrolytics dry out over time and are commonly known to have a 20 year life, these games are all now over 30 years old. Values used on factory boards varied and may be different, higher voltage tolerances are an improvement. Factory board is marked 5765-09466-01 on the board and D-8345-XXX on a sticker. Some System 11 games in this list may have used a later Power Supply board

Contains all of the electrolytic caps on a Williams Sound board. Electrolytics dry out over time and are commonly known to have a 20 year life, these games are all now over 30 years old. Values used on factory boards varied and may be different, higher voltage tolerances are an improvement. Please note information varies, not all games and sound board types they use have been confirmed. I've seen a variety of these sounds cards and can identify them as following:

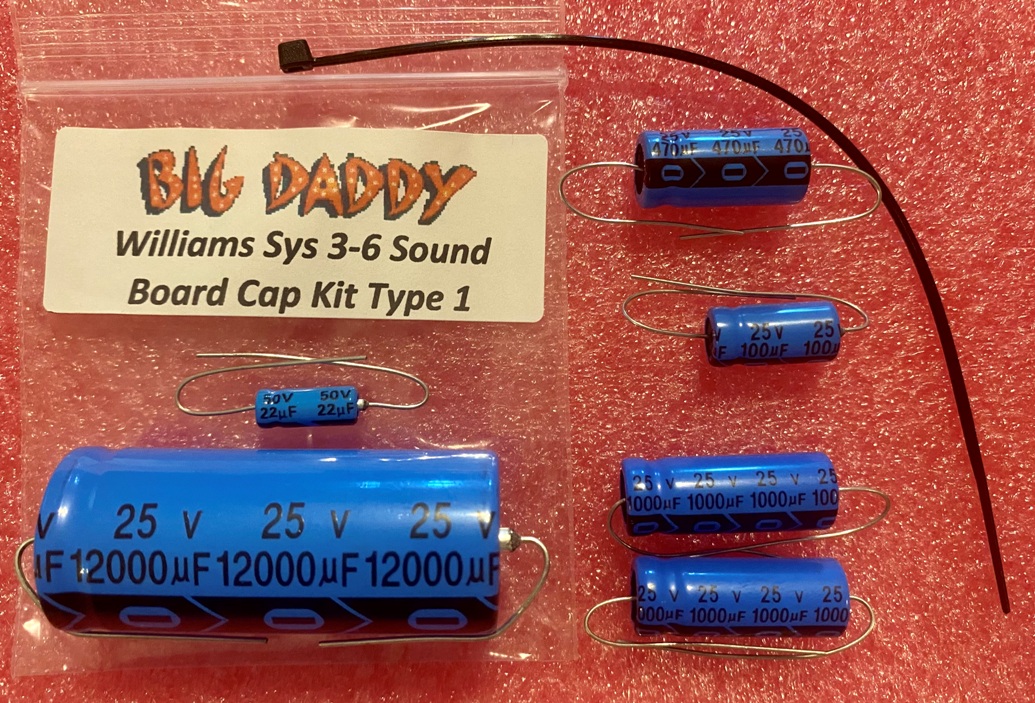

Type 1, 1st Generation. No markings on the board, large capacitor is vertical. Volume control has 2" shaft. Three (3) .156 connectors along the top, one fuse. Top picture to the left.

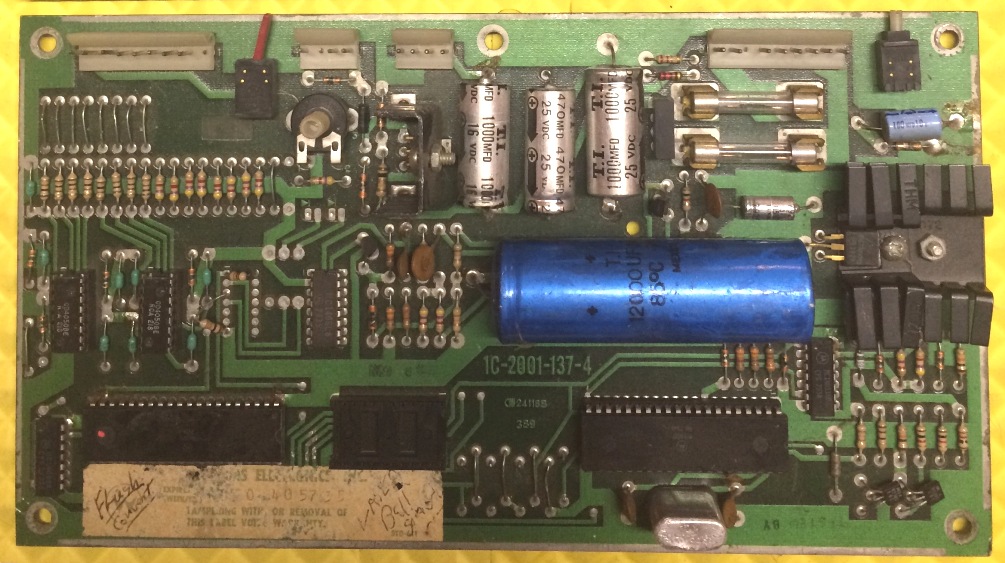

Type 1, 2nd Generation. Marked 1C-2001-137-4 on the board below the large horizontal capacitor. Small knob volume control. Four (4) .156 connectors along the top, two fuses. Bottom picture to the left.

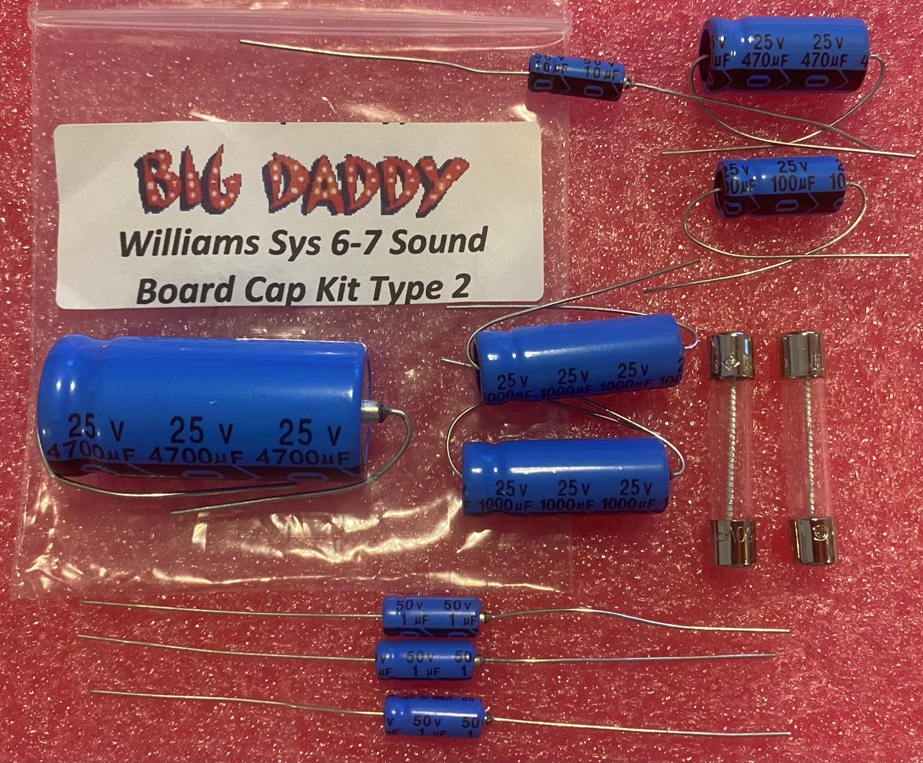

Contains all of the electrolytic caps on a Williams System 6-7 Type 2 sound board. Electrolytics dry out over time and are commonly known to have a 20 year life, these games are all now over 30 years old. Values used on factory boards varied and may be different, higher voltage tolerances are an improvement.

Type 2 Sound only. Boards are marked 1C-2001-146-3, 1C-2001-146-5 or 1C-2001-146-6 on the board lower right corner. Stamped or a sticker sometimes with D-8223, D-8224. Manual states jumper W1 needs to be installed. This is not marked on the board and is located below pin 2 of the left 9 pin connector.

Type 2 Sound with Speech. Boards are marked 1C-2001-146-3, 1C-2001-146-5 or 1C-2001-146-6 on the board lower right corner. Stamped or a sticker sometimes with D-8224. Will have 40 pin connector on left side for Speech module. Manual states jumper W1 needs to be removed. This is not marked on the board and is located below pin 2 of the left 9 pin connector.

If your sound board has a 12,000uf cap, order this to upgrade the Type 2 Sound board kit.

Williams flipper rebuild kit for use with all games from Post Time (EM 04/69) to Laser Ball (System 3 12/79). Believed to have been used on all of the following games. Each game has not been visually verified, so please take a good look at the picture and compare it to your worn out parts. This kit replaces all the major parts on two flipper assemblies.

Flipper rebuild kit for Williams System 6 and System 7 pinball machines. This kit replaces all the major parts on two flipper assemblies.
