Top quality repair kits and boards For Williams Pinball machines from Big Daddy Enterprises.

Contains replacements for all of the electrolytic capacitors found on the Williams System 9 MPU board #D-10535-XXX where XXX is the game number. PCB is marked 5764-10749-00 above the battery holder. Higher voltage values are acceptable and an improvement

Includes:

• (4) each 100uf/35V radial caps for C2, C5, C7 & C53
• (1) each 470uf/16V radial cap for C24
• (1) each 22uf/25V radial cap for C9
• (1) each 10uf/20V radial tantalum cap for C32 (Note OEM is axial)


Strike Zone (Bowler #1916), Star Light (#530)(few games), Sorcerer (#532), Space Shuttle (#535) and Comet (#540)

Coming soon! Contains replacements for all of the electrolytic capacitors found on the Williams System 9 MPU board #D-10535-XXX where XXX is the game number. PCB is marked 5764-10749-00 above the battery holder. Higher voltage values are acceptable and an improvement

Includes:

• (4) each 100uf/35V radial caps for C2, C5, C7 & C53
• (1) each 470uf/16V radial cap for C24
• (1) each 22uf/25V radial cap for C9
• (1) each 10uf/20V radial tantalum cap for C32 (Note OEM is axial)


Strike Zone (Bowler #1916), Star Light (#530)(few games), Sorcerer (#532), Space Shuttle (#535) and Comet (#540)

This kit provides fuses typically found on the early System 11 solid state pinball machines. Games vary a bit and this combination gives you enough for most. These fuses are all quality Bussman/Cooper or Littelfuse fuses

Includes:

• (2) each 1/8th Amp slow blow
• (2) each 2-½ Amp slow blow
• (2) each 4 Amp fast blow
• (2) each 5 Amp slow blow
• (2) each 7 Amp slow blow
• (2) each 7-½ Amp fast blow
• (2) each 8 Amp fast blow
• (2) each 10 Amp fast blow
• (2) each 15 Amp fast blow
• (2) each 20 Amp fast blow


Game Listing:, Checkpoint, Teenage Mutant Ninja Turtles, Batman, Star Trek 25th Anniversary, Hook, Rocky and Bullwinkle, Guns N' Roses, Jurassic Park, Last Action Hero, Lethal Weapon 3, Star Wars, Tales from the Crypt, The Who’s Tommy, WWF Royal Rumble.

Contains all of the electrolytic caps on a Williams System 7-11A Power Supply board. Electrolytics dry out over time and are commonly known to have a 20 year life, these games are all now over 30 years old. Values used on factory boards varied and may be different, higher voltage tolerances are an improvement. Factory board is marked 5765-09466-01 on the board and D-8345-XXX on a sticker. Some System 11 games in this list may have used a later Power Supply board

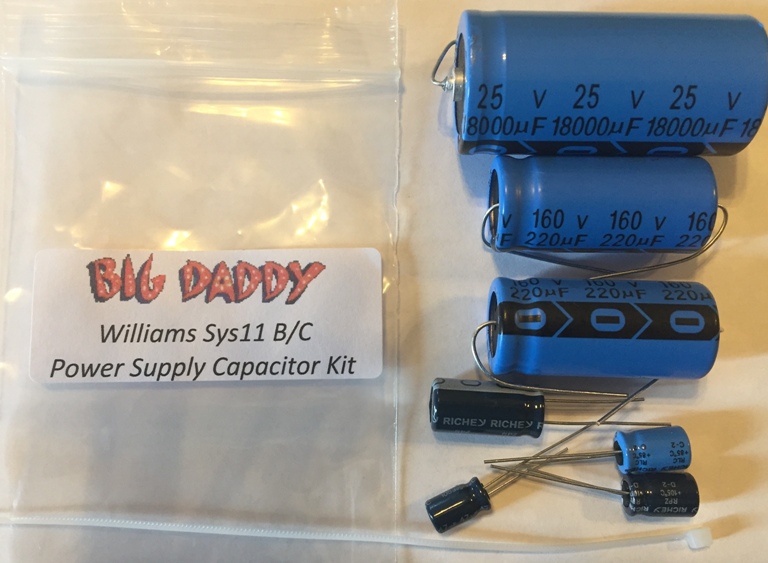

Because of product supply problems, the 220uf caps are radial. They mount fine, see picture. Contains all of the electrolytic caps on a Williams System 11B-11C Power Supply board D12246. Electrolytics dry out over time and are commonly known to have a 20 year life, these games are all now pushing 30 years old. Values used on factory boards varied and may be different, higher voltage tolerances are an improvement. Board is designed to take axial or radial caps in some location and kit can vary without notice. Factory board is square, marked 5765-12317-00 on the back and usually has a sticker with the game number & serial number to the right of the heat sink. Some System 11 games in this list may have used an earlier board. Some Dr. Dude's used a later board.

Williams System 11A-C Sound board capacitor kit for type D-11297 & D-11298 Background Sound and Speech boards & type D-11581 Audio boards. Electrolytic capacitors dry out over time and are commonly known to have a 20 year life, these games are all now over 30 years old. Values used on factory boards varied and may be different, higher voltage tolerances are an improvement. Please note some D-11581 boards are not fully populated and noted with an * below, and that D-11298 boards have caps in different locations and not all are used.

For boards D-11297 & D-11298 (Pinbot, Early F-14 Tomcat and Millionaire)

• (2) each 1000uf/16V radial cap for C19 & C25
• (2) each 470uf/16V radial cap for C17 & C23
• (3) each 100uf/35V radial cap for C26, C27 & 1 extra
• (5) each 10uf/50V axial cap for C3, C4, C5, C6 & C8 **

**Note: Manual calls for C9 being a 10uf cap, but no examined boards have it populated.


For boards D-11581 (Later F-14 Tomcat, Fire!, Big Guns, Space Station, Cyclone, Banzai Run, Swords of Fury, Taxi, Earthshaker, Black Knight 2000, Transporter the Rescue, Police Force, Elvira and the Party Monsters, Bad Cats, Mousin' Around!, Whirlwind, The Bally Game Show, Pinbot (Some), Pool Sharks, Rollergames, Diner, Radical!, Dr. Dude, Riverboat Gambler, Bugs Bunny's Birthday Ball. Also used in Arch Rivals video game.

• (2) each 1000uf/16V radial cap for C29 & C32
• (2) each 470uf/16V radial cap for C26 & C30
• (3) each 100uf/35V radial cap for C12, C19 & C24
• (5) each 10uf/50V axial cap for C1, C3, C4, C8 & C17*
• (1) each 1uf/63V radial cap for C11 (until axials are in stock. Location is below mark "U18")

Of note: The Pinbot manual says D-11297 but I believe it's a typo. All Pinbot boards I've looked at have this number covered, but I've found one that says D-11298-549, 549 is the Pinbot game number. If you have a Pinbot showing D-11297-549, I would love to have a picture.

Flipper rebuild kit for certain Williams System 9-11 pinball machines. This kit replaces all the major parts on two flipper assemblies.

Flipper rebuild kit for certain Williams System 11 pinball machines. This kit replaces all the major parts on two flipper assemblies.

Flipper rebuild kit for most Williams System 11 & some WPC pinball machines. This kit replaces all the major parts on two flipper assemblies. Williams/Bally reference #A-13524-1.
