Diodes & Rectifiers

Please Click Here if you do not see a menu frame on the left

Standard Rectifiers & Diodes	High Powered Rectifiers
Zener Diodes	Bridge Rectifiers
Light Emitting Diodes (LED)

All items, descriptions, prices, and availability are subject to change without notice
All pictures are representative and may not necessarily show the actual brand of component you'll receive

---

Standard Diodes & Rectifiers

Part	Item	Description
	REC-1N270	1N270 Germanium Diode 100 Volt, 40mA - Obsolete Many Gottlieb machines use these for switch matrix diodes $1.00 Each $4.50 5-Pack

---

Part	Item	Description
	REC-CDSH270	CDSH-270 Germanium Diode 100 Volt, 100mAmp, Spec Modern equivalent to the obsolete 1N270 $0.60 Each $2.50 5-Pack

Part	Item	Description
	REC-1N3045	1N3045 Silicon Rectifier AKA Motorola 1M110 100 Volt, 1 Watt N/A, please see 2EZ110 below

Part	Item	Description
	REC-1N4002	1N4002 Silicon Rectifier 100 Volt, 1 Amp, Spec SPECIAL PURCHASE $0.05 Each $0.70 20-Pack

Part	Item	Description
	REC-1N4004	1N4004 Silicon Rectifier 400 Volt, 1 Amp, Spec Used on lots of power supplies and drivers, as well as on most coils $0.08 Each $1.00 20-Pack

Part	Item	Description
	REC-1N4005	1N4005 Silicon Rectifier 600 Volt, 1 Amp, Spec SPECIAL PURCHASE Used on lots of power supplies and drivers, as well as on most coils $0.08 Each $1.00 20-Pack

Part	Item	Description
	REC-1N4007	1N4007 Silicon Rectifier 1000 Volt, 1 Amp, Spec A beefier version of 1N4004 $0.08 Each $1.00 20-Pack

---

Part	Item	Description
	REC-1N4148	1N4148 Switching Diode 100 Volt, 200 mAmp, Spec Used all over the place on both Bally and Gottlieb Solid State Machines $0.05 Each $1.00 25-Pack

---

Part	Item	Description
	REC-PTC205	PTC205 Rectifier 1000 Volt (1kV), 2.5 Amp Limited stock, only (4) available Similar to 1N5399 $0.44 Each $4.00 10-Pack

---

Part	Item	Description
	REC-1N5399	1N5399 Rectifier 1000 Volt (1kV), 1.5 Amp $0.15 Each $1.40 10-Pack

---

Part	Item	Description
	REC-1N5401	1N5401 Rectifier 100 Volt, 3 Amp, Spec CR5 - CR8 on Bally AS-2518-54 Rectifier Boards $0.11 Each $1.00 10-Pack

---

Part	Item	Description
	REC-1N5402	1N5402 Rectifier 200 Volt, 3 Amp, Spec A heavier duty version of 1N5401 $0.13 Each $1.20 10-Pack

---

Part	Item	Description
	REC-1N5404	1N5404 Rectifier 400 Volt, 3 Amp, Spec A heavier duty version of 1N5402 $0.15 Each $1.40 10-Pack

---

Part	Item	Description
	REC-1N5817	1N5817 Schottky Rectifier 20 Volt, 1 Amp, Spec The best choice for blocking diodes on MPU battery packs $0.20 $1.75 10-Pack

---

Part	Item	Description
	REC-1N5819	1N5819 Schottky Rectifier 40 Volt, 1 Amp, Spec $0.20 $1.75 10-Pack

---

---

High Powered Rectifiers

Part	Item	Description
	REC-MR751	MR751/GI751 Rectifier 100 Volt, 6 Amp CR1 & CR2 on Gottlieb System-1 power supplies. Two shown as stock changes, functionally equivalent. $0.50 $2.25 5-Pack

---

Part	Item	Description
	REC-MR752	MR752 Rectifier 200 Volt, 6 Amp Same as above, but rated at 200 Volts $0.50 $2.25 5-Pack

---

Part	Item	Description
	REC-6A4	6A4 Rectifier 400 Volt, 6 Amp, Spec Used on certain Williams machines $0.35 Each $1.50 5-Pack

---

---

Zener Diodes

Used all over the place on both Bally, Gottlieb, and Williams solid state machines just pick all you want below Spec Sheets Some styles may be supplied on tape

Description Item   1N4730A 3.9 Volt, 1 Watt ZEN-1N4730A $0.25 Each $1.00 5-Pack 1N4734A 5.6 Volt, 1 Watt ZEN-1N4734A $0.25 Each $1.00 5-Pack 1N4735A 6.2 Volt, 1 Watt ZEN-1N4735A $0.25 Each $1.00 5-Pack 1N4737A 7.5 Volt, 1 Watt ZEN-1N4737A $0.25 Each $1.00 5-Pack 1N4738A 8.2 Volt, 1 Watt ZEN-1N4738A $0.25 Each $1.00 5-Pack 1N4739A 9.0 Volt, 1 Watt ZEN-1N4739A $0.25 Each $1.00 5-Pack 1N4742A 12.0 Volt, 1 Watt ZEN-1N4742A $0.25 Each $1.00 5-Pack 1N4743A 13.0 Volt, 1 Watt ZEN-1N4743A $0.25 Each $1.00 5-Pack 1N4744A 15.0 Volt, 1 Watt ZEN-1N4744A $0.25 Each $1.00 5-Pack 1N4745A 16.0 Volt, 1 Watt ZEN-1N4745A $0.25 Each $1.00 5-Pack 1N4746A 18.0 Volt, 1 Watt ZEN-1N4746A $0.25 Each $1.00 5-Pack 1N4751A 30.0 Volt, 1 Watt ZEN-1N4751A $0.25 Each $1.00 5-Pack 1N4753A 36.0 Volt, 1 Watt ZEN-1N4753A $0.25 Each $1.00 5-Pack 1N4758A 56.0 Volt, 1 Watt ZEN-1N4758A $0.25 Each $1.00 5-Pack 1N4759A 62.0 Volt, 1 Watt ZEN-1N4759A $0.25 Each $1.00 5-Pack 1N4760A 68.0 Volt, 1 Watt ZEN-1N4760A $0.25 Each $1.00 5-Pack 1N4763A 91.0 Volt, 1 Watt ZEN-1N4763A $0.15 Each $0.70 5-Pack 1N4764A 100.0 Volt, 1 Watt ZEN-1N4764A $0.25 Each $1.00 5-Pack 1N5232A 5.6 Volt, 1/2 Watt ZEN-1N5232A $0.25 Each $1.00 5-Pack 2EZ110 110 Volt, 2 Watt Suitable for VR-1 (1N3045 or 1M110) on Bally Display boards ZEN-2EZ110 $1.00 Each $4.50 5-Pack 1N5275A 140.0 Volt, 1/2 Watt Bally HV Regulators ZEN-1N5275A Currently out of stock, will sub with 2EZ140 $0.75 Each $3.00 5-Pack 2EZ140 140.0 Volt, 2 Watt Bally HV Regulators ZEN-2EZ140 Sub for 1N5275A $0.75 Each $3.00 5-Pack

---

---

Bridge Rectifiers

Part	Item	Description
	BRIDGE-L	Bridge Rectifier 200 Volt, 35 Amp, with Fast-on lugs Great for all all pinball machines $2.00 Each $9.00 5-Pack

---

Part	Item	Description
	BRIDGE-W	Bridge Rectifier 200 Volt, 35 Amp, with wire legs Great for all all pinball machines. Good replacements for Bally solid state rectifier boards, if you mount them on top of the board, like this and this $2.00 Each $9.00 5-Pack

---

Part	Item	Description

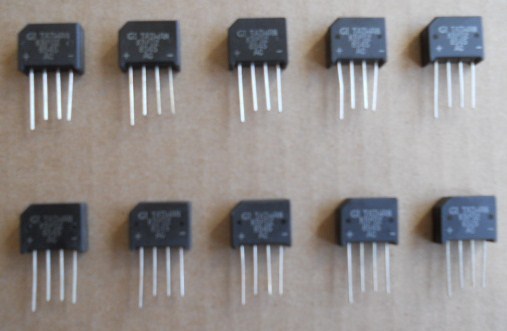

	BRIDGE-KBP02	Bridge Rectifier 200 Volt, 1.5A Amp, with wire legs SPECIAL PURCHASE 10 Pack $4.00 Each 50 Pack $17.00 5-Pack

---

---

LEDs
Styles and sizes vary. Sold based on functionality on pinball and video game boards.
If you have a specific type or size please email before ordering.

Part	Item	Description
	REC-LEDG	Standard LED - Green $0.12 Each $0.50 5-Pack

---

Part	Item	Description
	REC-LEDR	Standard LED - Red $0.12 Each $0.50 5-Pack

---

Part	Item	Description
	REC-LEDY	Standard LED - Yellow $0.12 Each $0.50 5-Pack

---

---

All items, descriptions, prices, and availability are subject to change without notice
All pictures are representative and may not necessarily show the actual brand of component you'll receive
