TRANSISTORS

Please Click Here if you do not see a menu frame on the left

MOSFETS 2N Series MPS Series MJ Series TIP Series Misc

All items, descriptions, prices, and availability are subject to change without notice
All pictures are representative and may not necessarily show the actual brand of component you'll receive


MOSFETS
PartItemDescription
TRN-12N10L 12N10L, MOSFET N-Channel Power
100 Volt, 12 Amp, TO-220
(Fairchild RFP12N10L)
Used on Gottlieb System-3 Drivers and Stern Whitestar games. Can use as a sub for IRL530 (but IRL530 is 14 Amp!).

$1.25 Each

$5.50 5-Pack


PartItemDescription
TRN-FQP17P06 FQP17P06, MOSFET P-Channel Power
60 Volt, 17 Amp, TO-220

Used on Williams System 3-11 driver boards to replace the lamp matrix resistors in conjunction with zero ohm resistors.

$1.25 Each

$5.50 5-Pack


PartItemDescription
TRN-STP22NE10L STP22NE10L, MOSFET N-Channel Power
100 Volt, 22 Amp, TO-220 Specs
Used on various games.
Out of stock, will sub compatible IRL540N

$2.00 Each

$9.00 5-Pack


PartItemDescription
TRN-IRF9530 IRF9530, MOSFET P-Channel Power
100 Volt, 12 Amp, TO-220
Alternate for P12P06.
Can use in place of IRF9531.
Used on Gottlieb games.

$1.25 Each

$5.50 5-Pack


PartItemDescription
TRN-IRL540N IRL540N, MOSFET N-Channel Power
100 Volt, 26 Amp, TO-220 Specs
Used on various games.

$2.00 Each

$9.00 5-Pack


2N Series Transistors

PartItemDescription
TRN-2N2836 2N2836, PNP Audio Amp
These are NOS Germaniums that I found at a great price but ended up not being pinball related. Exact replacement for Audio Output transistors on certain 1965 Harmon Kardon stereos. Also might be used for 2N176. <SOLD OUT>
If you are interested, please email me, currently not actively looking

$2.50 Each
$10.00 5-Pack


PartItemDescription
TRN-2N3055 2N3055, NPN Power
100 Volt, 15 Amp, TO-3 Specs
Used on Gottlieb System-1 &
System-80 Drivers

$1.00 Each
$4.50 5-Pack


PartItemDescription
TRN-2N3416 2N3416, NPN General Purpose Small Signal
50 Volt, 500 mAmp, TO-92 Specs
Used on Gottlieb System-1 power supplies

$0.35 Each
$1.50 5-Pack


PartItemDescription
TRN-2N3440 2N3440, NPN Bipolar Power
300 Volt, 1 Amp, TO-39 Specs
Used on Bally HV Regulators

$0.75 Each
$3.50 5-Pack


PartItemDescription
TRN-2N3584 2N3584, NPN High Power
250 Volt, 2 Amp, TO-66, Specs
Used on Bally HV Regulators

$6.00 Each
$25.00 5-Pack


PartItemDescription

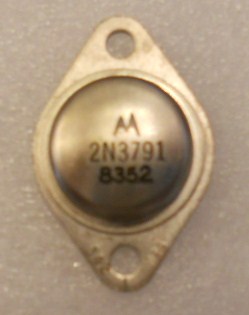

TRN-2N3791 2N3791, PNP Bipolar Power transistor
60 Volt, 10 Amp, TO-3
Used on Summit slot machine
power supplies.
Special Purchase NOS parts

$1.50 Each
$6.00 5-Pack


PartItemDescription
TRN-2N3904 2N3904 Transistor, NPN General Purpose Small Signal
40 Volt, 200 mAmp, TO-92
Used on Bally -17, 35, & -133 MPU
and Squawk & Talk Modules

$0.25 Each
$1.00 5-Pack


PartItemDescription
TRN-2N3905 2N3905 Transistor, PNP General Purpose Small Signal
40 Volt, 200 mAmp, TO-92

$0.25 Each
$1.00 5-Pack


PartItemDescription
TRN-2N3906 2N3906 Transistor, PNP General Purpose Small Signal
40 Volt, 200 mAmp, TO-92

$0.25 Each
$1.00 5-Pack


PartItemDescription
TRN-2N4401 2N4401 Transistor, NPN Medium Power
40 Volt, 600 mAmp, TO-92 Specs

$0.10 Each
$0.75 10-Pack


PartItemDescription
TRN-2N4403 2N4403 Transistor, PNP Medium Power
40 Volt, 600 mAmp, TO-92 Specs
Q3 & Q4 on Bally AS-2518-61B
Squawk & Talk
Sub for MPS-A70 on Gottlieb Games

$0.15 Each
$0.50 5-Pack


PartItemDescription
SCR-2N5060 2N5060 SCR
30 Volt, 0.8 Amp, TO-92, Spec
Smaller SCR on Bally Lamp Driver Modules

$0.40 Each
$1.75 5-Pack


PartItemDescription
TRN-2N5296 2N5296, NPN Bipolar Junction Transistor
60 Volt, 4 Amp, TO-220
New Old Stock, RCA branded, may not restock depending on demand,
only 175 in stock Feb 2011

$2.50 Each
$10.00 5-Pack


PartItemDescription
TRN-2N5401 2N5401, PNP General Purpose Amp
150 Volt, 600 mAmp, TO-92 Specs
Used on Bally & Stern
Display Modules

$0.10 Each
$0.55 7-Pack Strip


PartItemDescription
TRN-2N5550 2N5550, NPN Small Signal
140 Volt, 600 mAmp, TO-92 Specs
Used on Gottlieb System-80 power supplies

$0.20 Each
$0.75 5-Pack


PartItemDescription
TRN-2N5551 2N5551, NPN Small Signal
160 Volt, 600 mAmp, TO-92 Specs
Used on Williams and Gottlieb boards

$0.20 Each
$0.75 5-Pack


PartItemDescription
TRN-2N5875 2N5875, PNP Power
60 Volt, 10 Amp, TO-3
Found on Gottlieb drivers and playfields

Currently subbing MJ2955

$2.00 Each
$9.00 5-Pack


PartItemDescription
TRN-2N5879 2N5879, PNP Power
60 Volt, 15 Amp, TO-3
Found on Gottlieb drivers and playfields

Picture shows similar. Currently out of stock, order better 2N5880 below


PartItemDescription
TRN-2N5880

2N5880, PNP Power
80 Volt, 15 Amp, TO-3
Good replacement for the 2N5875/79
found on Gottlieb drivers and playfields
Currently subbing MJ2955

$2.00 Each
$9.00 5-Pack


PartItemDescription
TRN-2N5884 2N5884, PNP Power
80 Volt, 25 Amp, TO-3 Specs
Replaces the 2N5875/79/80 found
on many Gottlieb drivers and playfields
Out of stock: Subbing MJ2955

$2.00 Each
$9.00 5-Pack


PartItemDescription
TRN-2N6041 2N6041, PNN Darlington
80 Volt, 10 Amp, TO-220 Specs
Used on Atari Boards as direct replacement for the SJE783 used on the solenoid driver and display board

$2.50 Each
$10.00 5-Pack


PartItemDescription
TRN-2N6043 2N6043, NPN Darlington
60 Volt, 10 Amp, TO-220 Specs
Used on many Gottlieb Drivers

$1.00 Each
$4.50 5-Pack


PartItemDescription
TRN-2N6059 2N6059, NPN Darlington
100 Volt, 12 Amp, TO-3 Specs
Use for PMD10K60 & PMD12K40 on
Gottlieb Pop Bumper Drivers and
Power Supplies

$3.00 Each
$14.00 5-Pack


PartItemDescription
TRN-2N6122 2N6122, NPN General Purpose Power
100 Volt, 3 Amp, TO-220 Specs
Used on some Williams Machines
Currently subbing TIP-31C

$0.50 Each
$2.25 5-Pack


PartItemDescription
TRN-2N6427 2N6427, NPN Darlington
40 Volt, 1.2 Amp, TO-92 Specs

$0.20 Each
$0.75 5-Pack



MPS Series Transistors
PartItemDescription
TRN-MPSA06

MPS-A06, NPN Darlington
80 Volt, 0.5 Amp, TO-92 Specs
Used on mid to late 80s William's
power supply (Q4)

$0.15 Each
$0.50 5-Pack

TRN-MPSA13 MPS-A13, NPN Darlington
30 Volt, 1.2 Amp, TO-92 Specs
Used on Gottlieb Drivers

$0.15 Each
$0.50 5-Pack

TRN-MPSA14 MPS-A14, NPN Darlington
30 Volt, 1.2 Amp, TO-92 Specs
Used as a sub for 2N6427 or MPSA13

$0.15 Each
$0.50 5-Pack


PartItemDescription
TRN-MPS3702 MPS-3702, PNP General Purpose Amp
25 Volt, 800 mAmp, TO-92 Specs
Used on Bally MPU Modules

$0.25 Each
$1.00 5-Pack


PartItemDescription
TRN-MPSA42 MPS-A42, NPN High Voltage Amp
300 Volt, 500 mAmp, TO-92 Specs
Used on Bally & Stern Display Modules,
mid to late 80s William's power supply (Q4)
and some Williams display drivers

$0.20 Each
$0.75 5-Pack


PartItemDescription
TRN-MPSA43 MPS-A43, NPN High Voltage Amp
200 Volt, 200 mAmp, TO-92 Specs
Used on Gottlieb System-1 power supplies

$0.25 Each
$1.00 5-Pack


PartItemDescription
TRN-MPSA70 MPS-A70, PNP Small Signal
40 Volt, 100 mAmp, TO-92 Specs

Currently subbing 2N4403

$0.50 Each
$2.25 5-Pack

TRN-MPSA92 MPS-A92, PNP High Voltage Amp
300 Volt, 500 mAmp, TO-92 Specs

Used instead of MPS-A42 on some games

$0.50 Each
$2.25 5-Pack


PartItemDescription
TRN-MPSD52
MPS-D52, PNP General Purpose Amp
150 Volt, 600 mAmp, TO-92 Specs

Currently subbing 2N5401
$0.10 Each
$0.40 5-Pack

PartItemDescription
TRN-MPS6531
MPS-6531, NPN General Purpose
Used On Allied Leisure Pinballs
40 Volt, 1Amp, TO-92

$0.12 Each
$0.50 5-Pack

PartItemDescription
TRN-CENU45 CEN-U45, NPN Darlington
40 Volt, 2 Amps, TO-202 Specs
Same as Motorola MPS-U45
Used on most Gottlieb Drivers

$2.75 Each
$13.00 5-Pack


PartItemDescription

Click for larger picture
TRN-MPSU45 MPS-U45, NPN Darlington
40 Volt, 2 Amps, TO-202
Original NOS Motorola MPS-U45
For those purists. Limited stock ~200
Used on most Gottlieb Drivers

$8.95 Each
$39.95 5-Pack



MJ Series Transistors
Part Item Description
TRN-MJ2955 MJ2955, PNP Power
100 Volt, 15 Amp Specs
Good replacement for 2N5875/79/80
found on Gottlieb System-1 & -80 machines

$2.00 Each
$9.00 5-Pack

Part Item Description
TRN-MJ15016 MJ15016, PNP Power
120 Volt, 15 Amp Specs
Good replacement for 2N5875/79/80
found on Gottlieb System-1 & -80 machines
. Only 4 left in stock 12/2010, may not restock as others above are suitable

$2.25 Each
$10.00 5-Pack

Part Item Description

(Similar part shown for illustration)
TRN-MJE15030 MJE15030, NPN Power
150 Volt, 8 Amp
Replacement high-voltage transistor for Williams score display power. Direct replacement for games from the mid-to-late 1980's, and can be used as a replacement for the earlier obsolete "SDS" type transistors on earlier games going back to 1977 with slight modification. MJE15030 is the NPN companion to the MJE15031 PNP transistor (below), both of which are used in the high voltage circuitry for the display power. Use 2N5401 and MPSA42 for the pre-driver companions to these driver transistors.

$2.25 Each
$10.00 5-Pack

Part Item Description

(Similar part shown for illustration)
TRN-MJE15031 MJE15031, PNP Power
150 Volt, 8 Amp
Replacement high-voltage transistor for Williams score display power. Direct replacement for games from the mid-to-late 1980's, and can be used as a replacement for the earlier obsolete "SDS" type transistors on earlier games going back to 1977 with slight modification. MJE15031 is the PNP companion to the MJE15030 PNP transistor (above), both of which are used in the high voltage circuitry for the display power. Use 2N5401 and MPSA42 for the pre-driver companions to these driver transistors.

$2.25 Each
$10.00 5-Pack





TIP Series Transistors
PartItemDescription
TRN-TIP31C TIP-31C, NPN General Purpose Power
100 Volt, 3 Amp, TO-220 Specs
Sub for MJE340K and SW4F013 on
various Gottlieb boards

$0.50 Each
$2.25 5-Pack


PartItemDescription
TRN-TIP32B TIP-32B, PNP General Purpose Power
80 Volt, 3 Amp, TO-220, Spec

Special Purchase

$0.40 Each
$1.90 5-Pack


PartItemDescription
TRN-TIP32C TIP-32C, PNP General Purpose Power
100 Volt, 3 Amp, TO-220, Spec

$0.50 Each
$2.25 5-Pack


PartItemDescription
TRN-TIP36C TIP-36C, PNP General Purpose Power
100 Volt, 25 Amp, TO-218, Spec
Used on some Williams solid state machines

$1.65 Each
$7.00 5-Pack


PartItemDescription
TRN-TIP42

TIP-42, PNP Medium Power
40 Volt, 6 Amp, TO-220, Spec
Used on some Williams solid state machines

CURRENTLY UNAVAILABLE
PLEASE REQUEST OR ORDER 42C

$1.00 Each
$4.00 5-Pack


PartItemDescription
TRN-TIP42C TIP-42C PNP Medium Power
100 Volt, 6 Amp, TO-220, Spec

$1.00 Each
$4.00 5-Pack


PartItemDescription
TRN-TIP102 TIP-102, NPN Darlington
100 Volt, 8 Amp, TO-220, Spec
Used on Bally & Stern Solenoid
Driver modules (SE9032), Williams boards and many, many others!

$0.60
Each
$2.50
5-Pack
$11.00
25-Pack
$40.00
100-Pack


PartItemDescription
TRN-TIP105 TIP-105, PNP Darlington
60 Volt, 8 Amp, TO-220, Spec
Used on Bally Professional
Home Version machines

$1.00 Each
$4.50 5-Pack


PartItemDescription
TRN-TIP107 TIP-107, PNP Darlington
100 Volt, 8 Amp, TO-220, Spec
Used on Williams WPC driver boards

$1.00 Each
$4.50 5-Pack


PartItemDescription
TRN-TIP110 TIP-110, NPN Darlington
60 Volt, 2 Amp, TO-220, Spec
Used on Bally Professional
Home Version machines

$1.00 Each
$4.50 5-Pack


PartItemDescription
TRN-TIP115 TIP-115, PNP Darlington
60 Volt, 2 Amp, TO-220, Spec
Used on some Gottlieb under-playfield
parts as a secondary driver

$1.00 Each
$4.50 5-Pack


PartItemDescription
TRN-TIP120 TIP-120, NPN Darlington
60 Volt, 5 Amp, TO-220, Spec

$0.75 Each
$3.25 5-Pack


PartItemDescription
TRN-TIP122 TIP-122, NPN Darlington
100 Volt, 5 Amp, TO-220, Spec

$0.75 Each
$3.25 5-Pack


PartItemDescription
TRN-TIP125 TIP-125, PNP Darlington
60 Volt, 5 Amp, TO-220, Spec

$0.75 Each
$3.25 5-Pack


PartItemDescription
TRN-TIP3055 TIP-3055, NPN Transistor
100 Volt, 15 Amp, TO-218
Used on Allied Leisure Pop Bumpers

$1.50 Each
$6.50 5-Pack


Miscellaneous

PartItemDescription
TRIAC-T2500D RCA T2500D TRIAC
400 Volt, 6 Amp, TO-220
Used in Summit Slot machines

$1.50 Each
$6.50 5-Pack



All items, descriptions, prices, and availability are subject to change without notice
All pictures are representative and may not necessarily show the actual brand of component you'll receive


[Home]


Big Daddy title, background art work, and Bally logo are copyright by Williams Electronics Co.
Gottlieb logos are copyright by D. Gottlieb & Company
All other content is copyright by Big Daddy Enterprises 2011 and may not be borrowed, copied,
downloaded, or reproduced in any way whatsoever without prior written consent from Big Daddy Enterprises
