For you do-it-yourself types - we have the following Bally repair kits.

We're assuming you have the knowledge and skills needed to install these kits, and that you are aware of the risks and dangers associated with working on electrical circuits. If you don't have these skills, please seek a professional to help you. You can also visit Clay's Repair Site for additional information.

Note: Pictures may not reflect actual components you will receive. Physical characteristics may be different. Also, due to the nature of electronic components, we can not accept returns on any repair kit ordered.

Big Daddy Enterprises will assume NO responsibility for any property damage and/or injury to yourself or others that may result from the use or misuse of anything you purchase from us, including services. Sending us an order implies that you understand and agree with this disclaimer.

DISPLAYS

SOLENOID DRIVER

LAMP DRIVER
Auxiliary Lamp Driver
AS 2518-52
Eight Ball Deluxe, Embryon,
Fathom, Flash Gordon,
Space Invaders, Speakeasy,
Vector, Xenon
Auxiliary Lamp Driver
AS 2518-43
KISS and Future Spa

REGULATORS

SOUND BOARDS
AS2518-61 Squawk & Talk Cap kit AS2518-32 Sound Module Cap kit AS2518-56 Sound Plus Cap kit
AS2518-51 Sound Module Cap kit AS2518-45 Cheap Squeak Cap kit AS2518-50 Sound Module Cap kit
A080-91855 Turbo Cheap Squeak Cap kit

POWER SUPPLIES

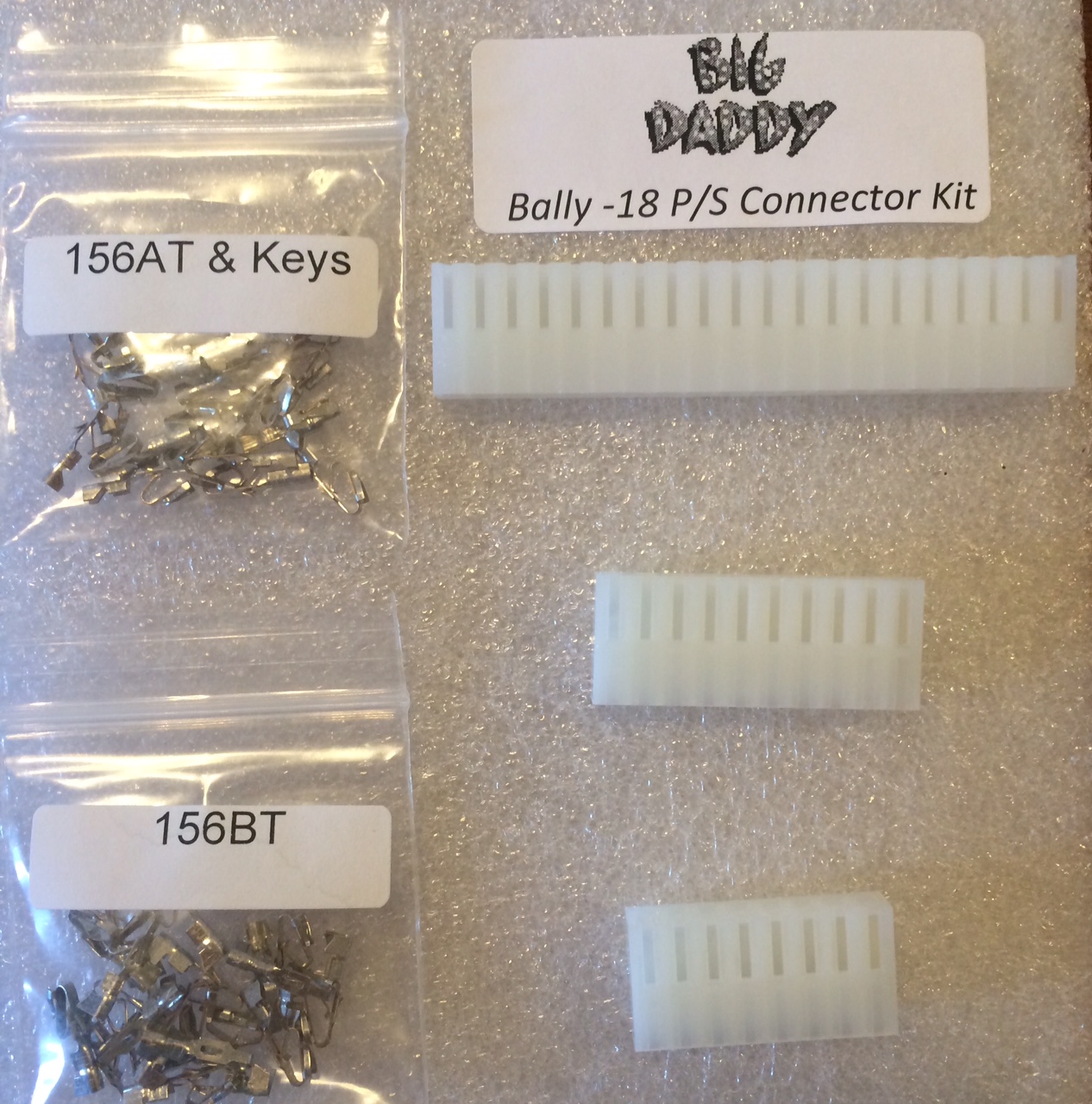

AS-2518-18 Power Supply AS-2518-18 P/S Connectors
AS-2518-49 Power Supply AS-2518-49 P/S Connectors AS-2877 Transformer (Early Bally)
AS-2518-54 Power Supply AS-2518-54 P/S Connectors AS-3071 Transformer (Later Bally)

PROCESSORS & MEMORY






DISPLAYS
6/7-Digit Display Display Connector Display Resistors



Bally/Stern 6 or 7 Digit Display Driver Kit


Parts shown in picture may be replaced with a compatible substitute
Includes all the parts needed to repair most problems with your Bally/Stern AS-2518-21,
AS-2518-15, or AS-2518-58 Display Driver Module. 4 kits and get the 5th kit free!

Note: This kit will NOT help you if your display glass is broken (check the nipple on the back side too), there are burn marks on the display segments, or there are major problems with the circuit board.

Here's the cheat-sheet for this kit: bally-display-1.pdf

$7.00 each
6- or 7-Digit Display Kit
$28.00 each
5-Pack

TOP  BOTTOM

Bally/Stern Display Driver Connector Kit

Parts shown in picture may be replaced with a compatible substitute
Here's a connector kit with everything you need to repair your Bally display female connectors

Add a 24-pin row of 0.156" header pins for $2.00 each

$6.00 each
Display Driver
Connector Kit
$27.00 each
Pack of 5 Kits
$2.00
.156 " Header Pins
Row of 24

TOP  BOTTOM

Bally/Stern Display Driver Resistor Kit

Parts shown in picture may be replaced with a compatible substitute
Includes enough resistors (40) to upgrade five Bally 6- or 7-digit display drivers.

Note: Even if your displays work fine, if the 100K Ohm resistors are the 1/4 watt size, you should upgrade to the 1/2 watt resistors. Your displays will work even better and will be more reliable if you do.

$2.00 each
Display Resistors
Pack of 40
$4.00 each
Display Resistors
Pack of 100

TOP  BOTTOM

SOLENOID DRIVER
Solenoid Driver #1 Solenoid Driver #2 Solenoid Driver #3
Solenoid Driver Combo #1 Solenoid Driver Combo #2

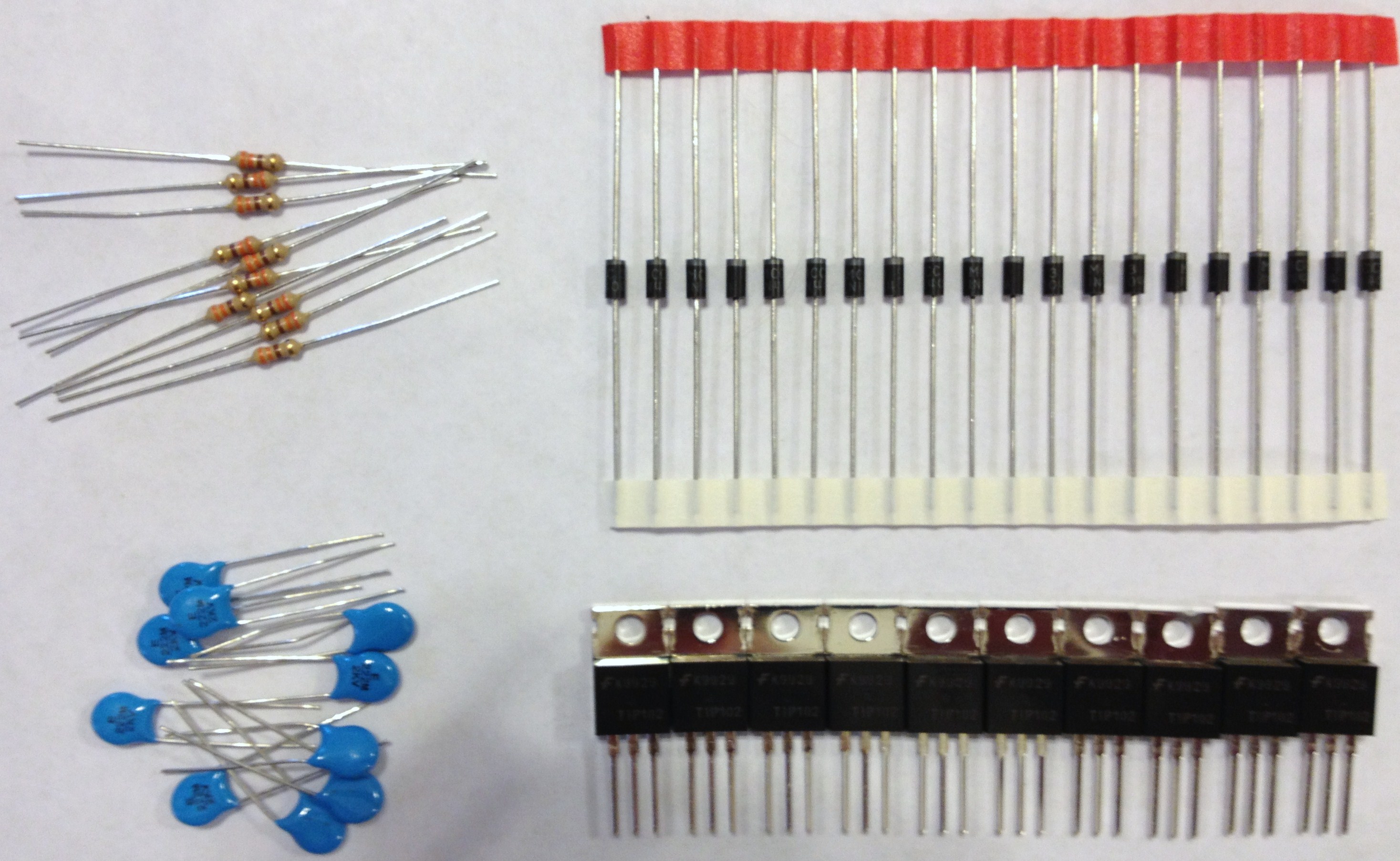

Bally/Stern Solenoid Driver Kit #1


Parts shown in picture may be replaced with a compatible substitute

Includes all the parts needed (less integrated circuits) to repair up to 10 solenoid driver circuits on your Bally AS-2518-22 or AS-2518-16 Solenoid Driver/Voltage Regulator Module.
I also include 10 extra 1N4004 rectifiers just in case you need extras for the solenoid coils.

Supersize this kit by adding 9 additional transistors, diodes, resistors, and capacitors for only $6.00 more!

Here's the cheat-sheet for this kit: bally-solenoid.pdf

$10.00 each
Solenoid Driver Kit #1
$16.00 each
Solenoid Driver Kit #1
Supersized

TOP  BOTTOM

Bally/Stern Solenoid Driver Kit #2 (IC Kit)

Parts shown in picture may be replaced with a compatible substitute
Includes the decoder and transistor array integrated circuits (and sockets) used on the Bally AS-2518-22 or AS-2518-16 Solenoid Driver/Voltage Regulator Module.

Here's the cheat-sheet for this kit: bally-solenoid.pdf

$16.50 each
Solenoid Driver Kit #2 (IC Kit)

TOP  BOTTOM

Bally/Stern Solenoid Driver Kit #3

Parts shown in picture may be replaced with a compatible substitute

Some folks don't need the 0.002uF, 3KV capacitors for their AS-2518-22 or AS-2518-16 solenoid driver, and unless there are obvious signs of stress, or they're swollen or missing, you probably don't need to replace them. So here's another kit with plenty of driver transistors and the associated resistors and diodes, plus an additional 10 diodes for coils and such, but no capacitors. If you do need a few capacitors, then supersize this kit. Besides getting more transistors, diodes, and resistors, you'll get 9 of the .002uF 3KV capacitors too!

Supersize this kit by adding 9 additional transistors, diodes, resistors, and .002uF capacitors for only $6.00 more!

Here's the cheat-sheet for this kit: bally-solenoid.pdf

$14.00 each
Solenoid Driver Kit #3
$20.00 each
Solenoid Driver Kit #3
Supersized

TOP  BOTTOM

Bally/Stern Solenoid Driver Combo Kit #1

Combines Solenoid Kits #1 and #2 for a savings of $3.00. For Bally Solenoid Driver/Voltage Regulator Module AS-2518-22 or AS-2518-16.

Supersize this combo kit and add 9 additional transistors, diodes, resistors, and capacitors for only $6.00 more!

Here's the cheat-sheet for this kit: bally-solenoid.pdf

$23.50 each
Solenoid Driver Combo #1
(Kits #1 & #2)
$29.50 each
Solenoid Driver Combo #1
Supersized

TOP  BOTTOM

Bally/Stern Solenoid Driver Combo Kit #2

Combines Solenoid Kits #2 and #3 for a savings of $3.00. For Bally Solenoid Driver/Voltage Regulator Module AS-2518-22 or AS-2518-16.

Supersize this combo kit and add 9 additional transistors, diodes, resistors, and capacitors for only $6.00 more!

Here's the cheat-sheet for this kit: bally-solenoid.pdf

$27.50 each
Solenoid Driver Combo #2
(Kits #2 & #3)
$33.50 each
Solenoid Driver Combo #2
Supersized

TOP  BOTTOM

Bally/Stern Solenoid Driver Board Connector Kits

Connector kits including housing, pins and keys and optional header rows for the
Bally Solenoid Driver/Voltage Regulator Module AS-2518-22 or AS-2518-16
or the Stern Solenoid Driver/Voltage Regulator Module SDU-100.

$15.00 each
Solenoid Driver
Connector Kit

$20.00 each
Solenoid Driver
Connector Kit
with Header Rows

TOP  BOTTOM

LAMP DRIVER
Lamp Driver #1 Lamp Driver #2 Lamp Driver #3
Lamp Driver Combo #1 Lamp Driver Combo #2 Lamp Driver Resistor Kit
Lamp Driver Connector Kit Auxiliary Lamp Driver

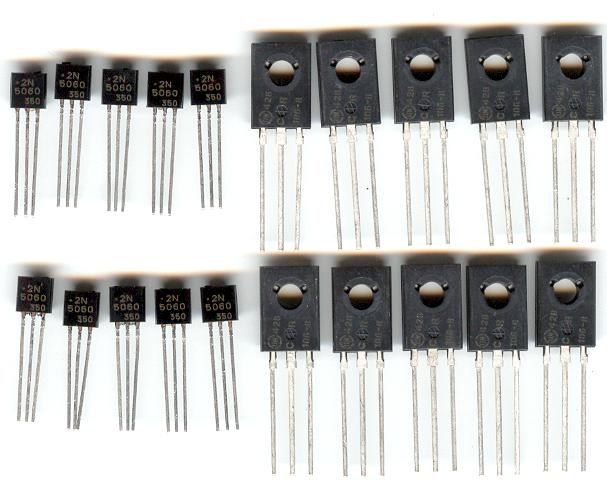

Bally/Stern Lamp Driver Kit #1


Parts shown in picture may be replaced with a compatible substitute

Includes 10 of each SCR used on the Bally AS-2518-14 or AS-2518-23 Lamp Driver Module.

Here's the cheat-sheet for this kit: bally-lamp.pdf

$9.00 each
Lamp Driver Kit #1

TOP  BOTTOM

Bally/Stern Lamp Driver Kit #2 (IC Kit)

Parts shown in picture may be replaced with a compatible substitute

Includes all of the integrated circuits (including sockets) used on the Bally AS-2518-14 Lamp Driver Module.

Here's the cheat-sheet for this kit: bally-lamp.pdf

$12.00 each
Lamp Driver Kit #2

TOP  BOTTOM

Bally/Stern Lamp Driver Kit #3 (IC Kit)

Parts shown in picture may be replaced with a compatible substitute

Includes all of the integrated circuits (including sockets) used on the Bally AS-2518-23 Lamp Driver Module.

Here's the cheat-sheet for this kit: bally-lamp.pdf

$10.00 each
Lamp Driver Kit #3

TOP  BOTTOM

Bally/Stern Lamp Driver Connector Kit


Parts shown in picture may be replaced with a compatible substitute

Includes all of the housings, crimp ends and keys used on the Bally AS-2518-23 or Stern LDA 100 Lamp Driver Module. Most games do not use all 96 pins so you'll have plenty extras. 6MDM uses 74 for example.

$15.00 each
Lamp Driver Connector Kit

TOP  BOTTOM

Bally/Stern Lamp Driver Combo Kit #1

Combines Lamp Driver Kits #1 and #2 for a savings of $3.00. For Lamp Driver Module AS-2518-14.

Here's the cheat-sheet for this kit: bally-lamp.pdf

$18.00 each
Lamp Driver Combo #1
(Kits #1 & #2)

TOP  BOTTOM

Bally/Stern Lamp Driver Combo Kit #2

Combines Lamp Driver Kits #1 and #3 for a savings of $3.00. For Lamp Driver Module AS-2518-23.

Here's the cheat-sheet for this kit: bally-lamp.pdf

$16.00 each
Lamp Driver Combo #2
(Kits #1 & #3)

TOP  BOTTOM

Bally/Stern Lamp Driver Resistor Kit

Parts shown in picture may be replaced with a compatible substitute

Sometimes the corrosion from the MPU drips on the Lamp Driver board and hits some resistors. Here's some of each of the 3 values found on both Bally/Stern lamp driver boards in case this happened to your board.

$1.50 each
Lamp Driver Resistor Kit

TOP  BOTTOM

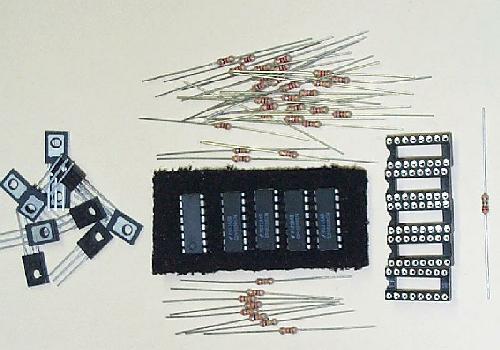

Bally AS-2518-52 Auxiliary Lamp Driver Kit #1

Parts shown in picture may be replaced with a compatible substitute
This kit supplies you with plenty of parts to fix your Bally AS-2518-52 Auxiliary Lamp Driver Module.
This board is used in games such as Eight Ball Deluxe, Embryon, Fathom, Flash Gordon,
Space Invaders, Speakeasy, Vector, and Xenon

Kit price reflects better than a 20% discount over parts purchased alone.

$13.00 each
Aux Lamp Driver Kit #1
(AS-2518-52)

TOP  BOTTOM

Bally AS-2518-43 Auxiliary Lamp Driver Kit #2

Parts shown in picture may be replaced with a compatible substitute
This kit supplies you with plenty of parts to fix your Bally AS-2518-52 Auxiliary Lamp Driver Module.
This board is used in games such as KISS, Centaur/Centaur II and Future Spa.
Kit price reflects about a 20% discount over parts purchased alone.

$11.00 each
Aux Lamp Driver Kit #2
(AS-2518-43)

TOP  BOTTOM

REGULATORS
Regulator Filter Caps 5-Volt Regulator 5-Volt Regulator Half-Kit
High Voltage Regulator High Voltage Regulator Half-Kit



Bally/Stern Regulator Capacitor Kit


Parts shown in picture may be replaced with a compatible substitute
If the filter capacitors on your Bally AS-2518-22 or AS-2518-16 Regulator Board
look like this and this, then it's probably time for some new ones

This kit includes brand new, quality filter caps, and some nylon zip strips too.

$15.00 each
Regulator Capacitor Kit

TOP  BOTTOM

Bally 5-Volt Regulator Kit

Parts shown in picture may be replaced with a compatible substitute

Provides all of the parts you need to rebuild the 5-volt regulator section of a Bally Solenoid/Regulator Module, AS-2518-22 or AS-2518-16.

Here's the cheat-sheet for this kit: bally-5vreg.pdf

$14.00 each
5-Volt Regulator Kit

TOP  BOTTOM

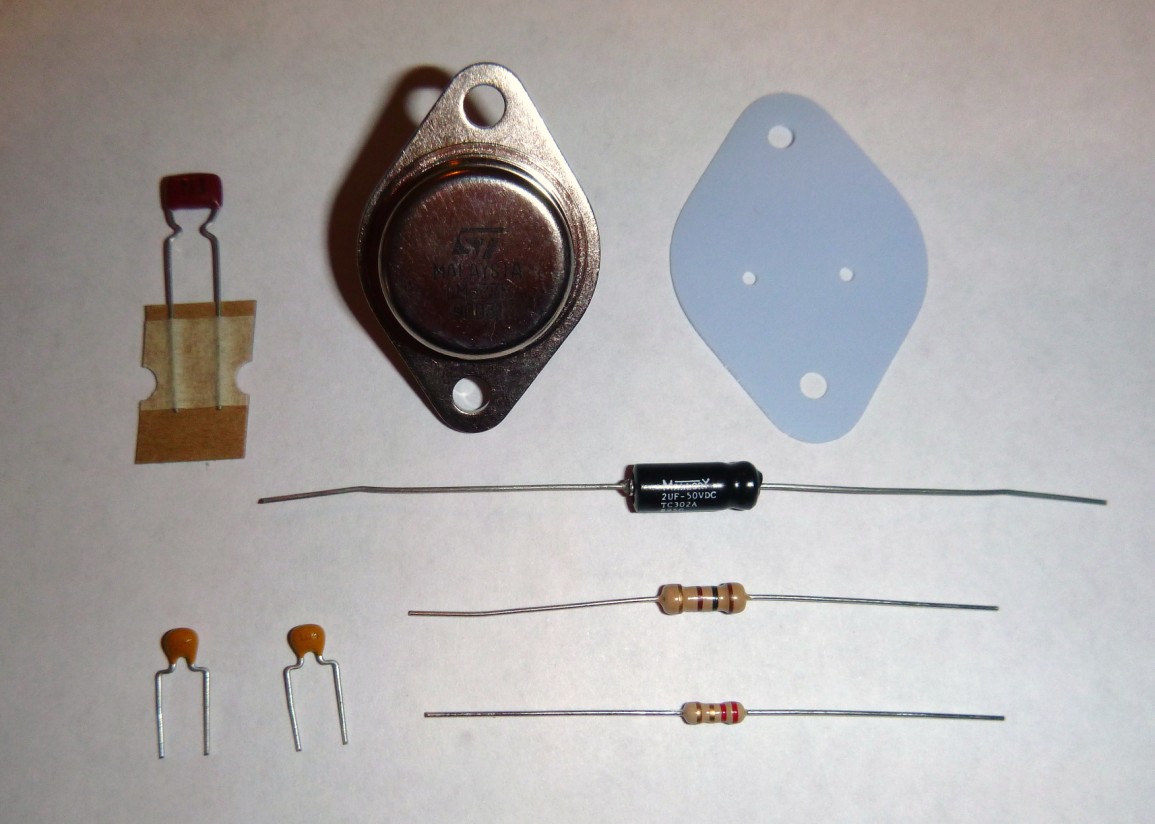

Bally 5-Volt Regulator Half-Kit

Parts shown in picture may be replaced with a compatible substitute

Provides all of the parts you need, except for the filter capacitor, to rebuild the 5-volt regulator section of a Bally Solenoid/Regulator Module, AS-2518-22 or AS-2518-16.

Here's the cheat-sheet for this kit: bally-5vreg.pdf

$10.00 each
5-Volt Regulator Half-Kit

TOP  BOTTOM

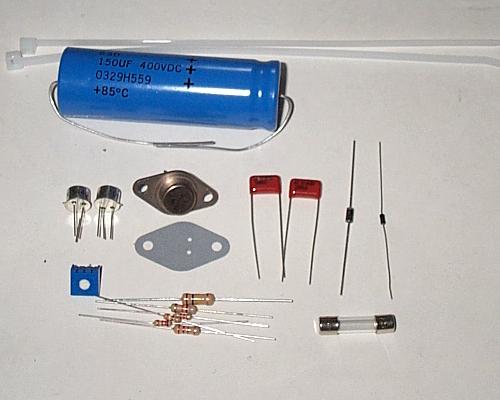

Bally High Voltage Regulator Kit

Parts shown in picture may be replaced with a compatible substitute
Provides all of the parts you need to rebuild the high voltage regulator section of a Bally Solenoid/Regulator Module, AS-2518-22, with original 8AG or substitute 3AG 3/16 Amp fuse (longer). Either fuse type are quality Buss or Littelfuse. You may also purchase this kit with no fuse for a buck less.

Include a new heatsink for Q23 (2N3440) for only $1.00 more

Here's the cheat-sheet for this kit: bally-hvreg.pdf

$26.00 Each
HV Regulator Kit with
original 8AG 3/16 Amp Fuse
$24.50 each
HV Regulator Kit with
longer 3AG 3/16 Amp Fuse
$23.50 each
HV Regulator Kit
with
No Fuse
$1.00 extra
TO-5 Heatsink

TOP  BOTTOM

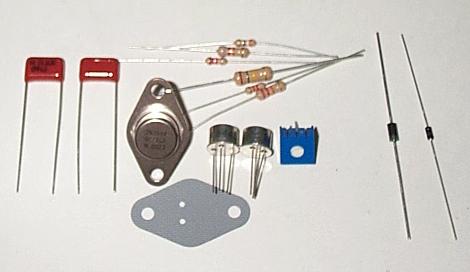

Bally High Voltage Regulator Half-Kit

Parts shown in picture may be replaced with a compatible substitute
If your HV filter capacitor is fine, then here's a half-kit that provides everything else to rebuild the high voltage regulator section
of a Bally Solenoid/Regulator Module, AS-2518-22 or AS-2518-16 except for the fuse.

Include a new heatsink for Q23 (2N3440) for only $1.00 more

Here's the cheat-sheet for this kit: bally-hvreg.pdf

$14.00 each
HV Regulator Half-Kit
$1.00 extra
TO-5 Heatsink

TOP  BOTTOM


SOUND BOARDS
AS2518-61 Squawk & Talk Cap kit AS2518-32 Sound Module Cap kit AS2518-56 Sound Plus Cap kit
AS2518-51 Sound Module Cap kit AS2518-45 Cheap Squeak Cap kit AS2518-50 Sound Module Cap kit
A080-91855 Turbo Cheap Squeak Cap kit

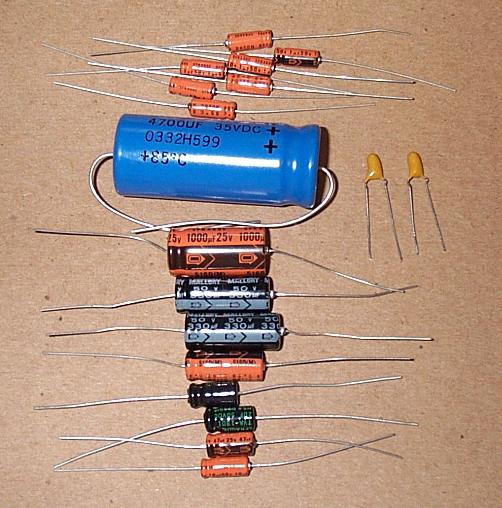

Bally AS-2518-61 Squawk & Talk Module Capacitor Kit


Used in the following Bally games: Flash Gordon, Eight Ball Deluxe/LE, Fireball II, Embryon, Fathom, Medusa,
Centaur/II, (with Say it Again reverb card), Elektra, Vector, Spectrum, Mr. & Mrs. Pacman, Midnight Marauders (non pinball)



Parts shown in picture may be replaced with a compatible substitute

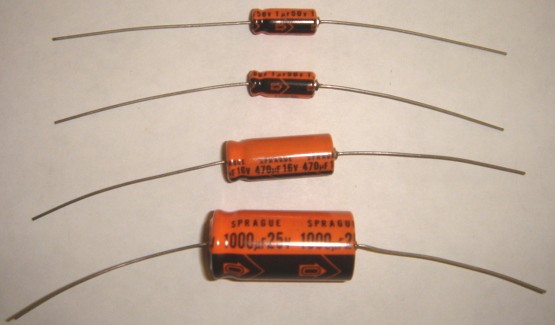

Here's a nice set of high quality capacitors which you can use to replace all the electrolytics and tantalums on your
AS-2518-61 Squawk & Talk. Some of these capacitors are rated at a higher voltage than original, but will work fine.
These have been verified to be the same on any of the revised Squawk & Talk boards, such as AS-2518-61B, etc.

If your 4700uf cap tests fine, you can save a bit of money by ordering without. This cap does not commonly fail but caps generally have a 25 year life.

Here's the cheat-sheet for this kit: bally-snt.pdf

Go all the way and replace the two 1K Ohm trimmer pots and save with the purchase of the kit.

Squawk & Talk Full Kit
$11.95 each

Squawk & Talk Kit
No 4700uf Cap
$6.95 each

Squawk & Talk Full kit
with Volume Trimmers
$13.75

TOP  BOTTOM


Bally AS-2518-32 Sound Module Capacitor Kit

Used in the following Bally games: Lost World, Six Million Dollar Man, Playboy, Voltan, Supersonic



Parts shown in picture may be replaced with a compatible substitute
Here's a nice set of high quality capacitors which you can use to replace all the electrolytics on your AS-2518-32 Sound Module. Some of these capacitors are rated at a higher voltage than the ones originally spec'ed, but will work fine.

$3.00 each
AS-2518-32 Sound Module
Capacitors

TOP  BOTTOM


Bally AS-2518-50 Sound Module Capacitor Kit

Used in the following Bally games: Lost World, Six Million Dollar Man, Playboy, Star Trek, Kiss, Voltan, Supersonic, Paragon, Harlem Globetrotter, Dolly Parton



Parts shown in picture may be replaced with a compatible substitute
Here's a nice set of high quality capacitors which you can use to replace all the electrolytics on your AS-2518-50 Sound Module. Some of these capacitors are rated at a higher voltage than the ones originally spec'ed, but will work fine.

$3.25 each
AS-2518-50 Sound Module
Capacitors

TOP  BOTTOM


Bally AS-2518-56 Sounds Plus Capacitor Kit

Used in the following Bally games: Xenon (with Vocalizer board AS-2518-57)



Parts shown in picture may be replaced with a compatible substitute
Here's a nice set of high quality capacitors which you can use to replace all the
electrolytics (except 4700uf) on your AS-2518-56 Sounds Plus board.
Some of these capacitors are rated at a higher voltage than the ones originally spec'ed, but will work fine.



$3.50 each
AS-2518-56 Sounds
Plus Capacitor Kit

TOP  BOTTOM


Bally AS-2518-51 Sound Module Capacitor Kit

Used in the following Bally games: Space Invaders, Nitro Groundshaker, Silverball Mania,
Rolling Stones, Mystic, Hotdoggin', Viking, Skateball, Frontier, Speakeasy, BMX and Gold Ball.

Picture coming

Parts shown in picture may be replaced with a compatible substitute
Here's a nice set of high quality capacitors which you can use to replace all the
electrolytics (except 4700uf) on your AS-2518-51 Sound Module board.
Some of these capacitors are rated at a higher voltage than the ones originally spec'ed, but will work fine.

$2.50 each
AS-2518-51 Sound Module
Capacitor Kit

TOP  BOTTOM


Bally AS-2518-45 Cheap Squeak Capacitor Kit

Used in the following Bally games: X's & O's, Kings of Steel, Black Pyramid, Spy Hunter, Fireball Classic, Cybernaut



Parts shown in picture may be replaced with a compatible substitute


Here's a nice set of high quality capacitors which you can use to replace all the electrolytics
(except 4700uf) on your AS-2518-45 Cheap Squeak board. Some of these capacitors are
rated at a higher voltage than the ones originally spec'ed, but will work fine.
The 4700 is outside the Audio area, as are the five 4.7uf caps at C10, C17, C22, C39 and C40.

$2.50 each
AS-2518-45 Cheap Squeak
Capacitors

TOP  BOTTOM


Bally A080-91855 Turbo Cheap Squeak (TCS) Capacitor Kit

Used in the following Bally games: Strange Science, Black Belt/Karate Fight, City Slicker, Hardbody



Parts shown in picture may be replaced with a compatible substitute
Here's a nice set of high quality capacitors which you can use to replace all the electrolytics
(except 4700uf) on your A080-91855 Turbo Cheap Squeak (TCS) Sound board. Some of these
capacitors are rated at a higher voltage than the ones originally spec'ed, but will work fine.

$2.50 each
A080-91855 Turbo Cheap Squeak
Capacitors

TOP  BOTTOM


FUSE KITS
Fuse Kit #1 Fuse Kit #2  Power Supply Fuses



Bally Fuse Kit #1


Parts shown in picture may be replaced with a compatible substitute
This kit provides 2 sets of fuses typically found on the early Bally solid state pinball machines, including the hard to find 3/16 Amp 8AG fuse found on the solenoid/regulator module. These fuses are all quality Bussman/Cooper or Littelfuse fuses.

$10.00 each
Bally Fuse
Set #1

TOP  BOTTOM

Bally Fuse Kit #2

Parts shown in picture may be replaced with a compatible substitute
This kit provides 2 sets of fuses typically found on the early Bally solid state pinball machines, but WITHOUT the small 3/16 Amp fuse found on the high voltage regulator. These fuses are all quality Bussman/Cooper or Littelfuse fuses.

$6.00 each
Bally Fuse
Set #2

TOP  BOTTOM

AS-2518-18 Fuse Kit

Parts shown in picture may be replaced with a compatible substitute
This kit provides 1 set of fuses typically found on the Bally AS-2518-18 power supply board. It does not include any under-playfield fuses, nor does it include the fuse located on the regulator/solenoid driver board.

These fuses are all brand new quality Bussman/Cooper or Littelfuse fuses.

$4.00 each
AS-2518-18 Power Supply
Fuse Kit

TOP  BOTTOM

AS-2518-49 Fuse Kit

Parts shown in picture may be replaced with a compatible substitute
This kit provides 1 set of fuses typically found on the Bally AS-2518-49 power supply board. It does not include any under-playfield fuses, nor does it include the fuse located on the regulator/solenoid driver board.

These fuses are all brand new quality Bussman/Cooper or Littelfuse fuses.

Note: Some machines that use the AS-2518-49 Rectifier Board, like Space Invaders, use a 5-Amp slow blow for F6 instead of a 3-Amp slow blow. This kit provides both, so you're covered either way.


$5.00 each
AS-2518-49 Power Supply
Fuse Kit

TOP  BOTTOM

AS-2518-54 Fuse Kit

Parts shown in picture may be replaced with a compatible substitute
This kit provides 1 set of fuses typically found on the Bally AS-2518-54 power supply board, including the 3-Amp slow blow found in the off-board fuse holder. It does not include any under-playfield fuses, the fuse for the strobe transformer, nor the fuse located on the regulator/solenoid driver board.

These fuses are all brand new quality Bussman/Cooper or Littelfuse fuses.

$4.00 each
AS-2518-54 Power Supply
Fuse Kit

TOP  BOTTOM

POWER SUPPLIES
AS-2518-18 Power Supply AS-2518-18 P/S Connectors AS-2518-49 Power Supply AS-2877 Transformer (Early Bally)
AS-2518-49 P/S Connectors AS-2518-54 Power Supply AS-2518-54 P/S Connectors AS-3071 Transformer (Later Bally)



AS-2518-18 Power Supply Kit #1


Parts shown in picture may be replaced with a compatible substitute
This kit provides all the parts you need (except the fuses) to rebuild your Bally AS-2518-18 Rectifier Board assembly. Connector kits for this board are available below. Buy them with this kit and save!

$15.00 each
AS-2518-18
Power Supply Kit #1
$0.80 each
Heat Sink Grease
Purchased w/ Kit
$1.00
Heat Sink Grease
By Itself

TOP  BOTTOM

AS-2518-18 Power Supply Kit #2

Parts shown in picture may be replaced with a compatible substitute
This kit provides all the parts you need to rebuild your Bally AS-2518-18 Rectifier Board assembly, including the fuses (quality Buss or Littelfuse brand fuses) found on the board. Connector kits for this board are available below. Buy them with this kit and save!

$18.00 each
AS-2518-18
Power Supply Kit #2
$0.80 each
Heat Sink Grease
Purchased w/ Kit
$1.00 each
Heat Sink Grease
By Itself
$4.00 each
Just the Fuses
By Themselves

TOP  BOTTOM

Bally AS-2518-18 Power Supply Connector Kit


Parts shown in picture may be replaced with a compatible substitute
Here's a connector kit with everything you need to repair your Bally AS-2518-18 Power Supply female connectors.

Add a row of 0.156" header pins for $2.00 each

Need Crimpers?

$9.00 each
AS-2518-18
Connector Kit
$8.00 each
AS-2518-18
Connector Kit with
Either AS-2518-18 Kit Above
$2.00 each
.156 " Header Pins
Row of 24

TOP  BOTTOM

AS-2518-49 Power Supply Kit #1

Parts shown in picture may be replaced with a compatible substitute

The VARO Dual Diodes originally used on the AS-2518-49 Rectifier Modules are no longer available, so this kit is actually the same kit as the AS-2518-18 kit (except for the 2 extra high-current fuse clips), which can easily be used to rebuild your -49 module. By retrofitting a standard bridge in place of the two VARO dual-diodes, as Steve Kulpa did here, you can easily replace the VARO duals with a much better MODERN bridge rectifier. Of course if there is nothing wrong with the controlled lamps on your machine, then you may just want to leave the dual diodes along and keep the extra bridge rectifier as a spare.

This kit provides all the parts you need (except the fuses) to rebuild your Bally AS-2518-49 Rectifier Board assembly. Connector kits for this board are available below. Buy them with this kit and save!

$16.00 each
AS-2518-49
Power Supply Kit #1
$0.80 each
Heat Sink Grease
Purchased w/ Kit
$1.00
Heat Sink Grease
By Itself

TOP  BOTTOM

AS-2518-49 Power Supply Kit #2

Parts shown in picture may be replaced with a compatible substitute

The VARO Dual Diodes originally used on the AS-2518-49 Rectifier Modules are no longer available, so this kit is actually the same kit as the AS-2518-18 kit (except for the two extra high-current fuse clips), which can easily be used to rebuild your -49 module. By retrofitting a standard bridge in place of the two VARO dual-diodes, as Steve Kulpa did here, you can easily replace the VARO duals with a much better MODERN bridge rectifier. Of course if there is nothing wrong with the controlled lamps on your machine, then you may just want to leave the dual diodes along and keep the extra bridge rectifier as a spare.

This kit provides all the parts you need (except the fuses) to rebuild your Bally AS-2518-49 Rectifier Board assembly. Connector kits for this board are available below. Buy them with this kit and save! This kit provides all the parts you need to rebuild your Bally AS-2518-49 Rectifier Board assembly, including the fuses (quality Buss or Littelfuse brand fuses) found on the board. Connector kits for this board are available below. Buy them with this kit and save!

$19.00 each
AS-2518-49
Power Supply Kit #2
$0.80 each
Heat Sink Grease
Purchased w/ Kit
$1.00 each
Heat Sink Grease
By Itself
$4.00 each
Just the Fuses
By Themselves

TOP  BOTTOM

Bally AS-2518-49 Power Supply Connector Kit

Parts shown in picture may be replaced with a compatible substitute
Here's a connector kit with everything you need to repair your Bally AS-2518-49 Power Supply female connectors

Add a 24-pin row of 0.156" header pins for $2.00 each

Need Crimpers?

$8.00 each
AS-2518-49
Connector Kit
$7.00 each
AS-2518-49
Connector Kit with
Either AS-2518-49 Kit Above
$2.00 each
.015" Header Pins
Row of 24

TOP  BOTTOM

AS-2518-54 Power Supply Kit #1

Parts shown in picture may be replaced with a compatible substitute
This kit provides all the parts you need (less connectors and fuses), to rebuild your Bally AS-2518-54 Rectifier Board assembly. Connector kits for this board are available below. Buy them with this kit and save!

$11.00 each
AS-2518-54
Power Supply Kit #1
$11.00 each
$0.80 each
Heat Sink Grease
Purchased w/ Kit
$1.00 each
Heat Sink Grease
By Itself

TOP  BOTTOM

AS-2518-54 Power Supply Kit #2

Parts shown in picture may be replaced with a compatible substitute
This kit provides all the parts you need, less connectors, to rebuild your Bally AS-2518-54 Rectifier Board assembly, including the fuses (quality Buss or Littelfuse brand fuses). Connector kits for this board are available below. Buy them with this kit and save!

$14.00 each
AS-2518-54
Power Supply Kit #2
$0.80 each
Heat Sink Grease
Purchased w/ Kit
$1.00 each
Heat Sink Grease
By Itself
$4.00 each
Just the Fuses
By Themselves

TOP  BOTTOM

AS-2518-54 Connector Kit #1

Parts shown in picture may be replaced with a compatible substitute
This kit contains a complete set of connectors for a Bally AS-2518-54 Power Supply Module. These Vertical Header Connectors have solder tails on the back side so they can be soldered directly onto the power supply board. They come with the 0.084" pins already installed.

The connectors are polarized with D-shaped holes and must be installed properly.

Need Crimpers?

$9.00 each
AS-2518-54
Connector Kit #1
$8.00 each
AS-2518-54
Connector Kit #1 with
Either AS-2518-54 Kit Above

TOP  BOTTOM

AS-2518-54 Connector Kit #2

Parts shown in picture may be replaced with a compatible substitute
This kit contains all the connectors and pins used to connect to the vertical headers located on a AS-2518-54 power supply board. Includes the crimp-on male and female pins.

THESE ARE NOT THE CONNECTORS MOUNTED DIRECTLY ON THE CIRCUIT BOARD

The connectors are polarized with D-shaped holes and must be installed properly.

Need Crimpers?

$12.00 each
AS-2518-54
Connector Kit #2
$11.00 each
AS-2518-54
Connector Kit #2 with
Either AS-2518-54 Kit Above

TOP  BOTTOM

Complete AS-2518-54 Connector Kit

Parts shown in picture may be replaced with a compatible substitute
This kit combines Kit #1 and Kit #2 above for a savings of $3.00. Contains a complete set of connectors for a Bally AS-2518-54 Power Supply Module including both the vertical header connectors mounted on the board plus the connectors and pins used to connect to the vertical headers.

These connectors are polarized with D-shaped holes and must be installed properly.

Need Crimpers?

$18.00 each
AS-2518-54
Complete Connector Kit
$17.00 each
AS-2518-54
Complete Connector Kit with
Either AS-2518-54 Kit Above

TOP  BOTTOM

Bally/Stern AS-2877 Transformer (Working/Tested Used)

Part shown in picture will not be the actual one you receive and do not include any wiring or brackets


This is the power supply transformer found on most early (1977-1980) Bally and (1977-1982) Stern games.
Bally games of this era put the power supply in the head (lower right corner), while Stern put them in the lower cabinet.
The manual part number is Bally AS-2877, AS-2877-1 or Stern 16B-3 / 37-7839.
It's often marked 122-125 on the top of the transformer itself. Each is clipped from a working used/tested
power supply and you will need to solder to your power supply board. Please check your output voltages first!

Remove all fuses except rightmost 3A Slow Blow F6. Remove J1 and J3, leaving only J2. Alternately, remove all fuses and plugs
and hook a direct 110V line directly to points 1 and 9 on the transformer, normally 1-2 and 9-11 are tied. Please note that if
you do not fuse this line, you may blow your circuit breaker or worse! Test points on the transformer are all AC and as follows:
2-6: 49VAC
8-10: 173VAC
17-18: 7.3VAC
13-14: 7.8VAC
15-16: 12VAC

This will not fix issues on your power supply board!
The most common needs for this are if your transformer is missing, smoking, or DOA!!

Due to its weight (over 10 pounds), it will only be shipped in a Flat Rate Priority box. Since my system defaults to
ground shipping an additional $4.00 shipping charge is added and it will show up for more in your cart.
International orders please order the one with additional shipping below
If you do not order the correct one, you will be billed for the difference.
Due to supply and demand, I've had to raise my price until I find good stock.

$104.00 each
AS-2877
Used Bally/Stern transformer
US Orders
$137.00 each
AS-2877
Used Bally/Stern transformer
International Orders

TOP  BOTTOM

Bally/Stern AS-3071 Transformer Assembly (Working/Tested Used)

Part shown in picture will not be the actual one you receive. Does include the shown plugs, fuse holder (with fuse) and mounting plate.


This is the power supply transformer found on most later (1980 to 1985) Bally games with the power supply in the bottom of the cabinet.

This is NOT the proper transformer for games with a florescent tube like Eight Ball deluxe LE (I have one available, contact me)
The associated power supply board is an AS2518-54 with the matching Molex plugs.
The following is a work in progress

Please check your output voltages first!

Testing instructions here

This will not fix issues on your power supply board!
The most common needs for this are if your transformer is missing, smoking, or DOA!!

Due to its weight (over 10 pounds), it will only be shipped in a Flat Rate Priority box. Since my system defaults to
ground shipping an additional $4.00 shipping charge is added and it will show up for more in your cart. .
International orders will be billed for the difference, with shipping being about $40 to most areas except Canada which is $30.

Due to supply and demand, I've had to raise my price until I find good stock.

OUT OF STOCK AND LOOKING FOR MORE!

$120.00 each
AS-3071
Used Bally transformer

TOP  BOTTOM

PROCESSORS & MEMORY
MPU Processor kits



MPU Processor Kit


Parts shown in picture may be replaced with a compatible substitute


Contains the Processor (6800) and 2 PIA (6821) integrated circuits for any Bally AS-2518-17, AS-2518-35, or AS-2518-133 MPU boards or Stern M-100 & M-200 MPU boards. Also included are three 40-pin machined sockets.

$22.00 each
Bally MPU
Processor Kit

TOP  BOTTOM

Deluxe MPU Processor Kit


Parts shown in picture may be replaced with a compatible substitute


Contains the Processor (6800), 2 PIA (6821), Static RAM (6810), and CMOS RAM (5101) integrated circuits for any Bally AS-2518-17, AS-2518-35, or AS-2518-133 MPU module or Stern M-100 & M-200 MPU boards. Also included are three 40-pin, one 24-pin, and one 22-pin machined sockets. The Stern M-200 has an additional 5101.

$35.00 each
Bally Deluxe MPU
Processor Kit
$9.00 each
Additional 5101 RAM &
socket for Stern M-200

TOP  BOTTOM




Bally/Stern MPU Connector Kit

Parts shown in picture may be replaced with a compatible substitute

Includes all of the housings, header pins, crimp ends and keys used on a Bally or Stern MPU board. Games do not use all 78 pins so you'll have plenty of extras. When you have corroded header pins, chances are your housing pins are corroded too. If you've sanded the pins, that's a temporary solution and you need to replace your header pins. IDC (push in) type connectors are less reliable than these crimp type. If you squeeze the housings and your game works for awhile, or booting up is problematic, switches and coils working are intermittent, you likely have connector issues that this kit will fix. Some Sterns use the 32 pin (J5) connector for the sound board and you may need to replace that header also.

                    • 1 ea. 28 pin header and housing (J1)
                    • 1 ea. 15 pin header and housing (J2)
                    • 1 ea. 16 pin header and housing (J3)
                    • 1 ea. 19 pin header and housing (J4)
                    • 100 ea. (.100) crimps ends
                    • 4 ea. (.100) keys



$16.00 each
Bally/Stern MPU
Connector Kit
$1.75 each
Additional 36 pin header
for Stern boards (J5)

Do you need a crimp tool?

TOP  BOTTOM




Thank you for your order!

If you have any questions, just drop us an

Thanks for your business!


Pay me securely with any major credit card through PayPal!
Pay me securely with any major credit card through PayPal!


[Home]


Big Daddy title, background art work, and Bally logo are copyright by Williams Electronics Co.
Gottlieb logos are copyright by D. Gottlieb & Company
All other content is copyright by Big Daddy Enterprises 2011 and may not be borrowed, copied,
downloaded, or reproduced in any way whatsoever without prior written consent from Big Daddy Enterprises
