Work in Progress
Used Untested Pinball Boards





Pinball 2000 Network card

This is a very cool addition to your Pinball 2000 game.

Used but tested (in a PC on a LAN) and working. You will need to configure it, help can be found below.
The SMC-8416T is the only Ethernet card that works in Pinball 2000:
Revenge from Mars (aka RFM), and Star Wars Episode 1 (aka SWE1). Access internal commands via your LAN or the
Internet (to check earnings, diagnostics, etc) or if you own more than one PB2K machine, you can set them up to have
your own tournament. Requires version 1.4 of the software and the card is installed in the extra ISA slot. After the settings
are configured for the network adjustments, you can connect to the XINA command shell via telnet or alternately you
can connect to the machine using a web browser (a simple http server is built in).

See http://www.pinball2000.de for information about this game and Pinball2000.

Download the Setup Disk (1.44 Floppy) For The SMC Ether_EZ Network Controller


Join the worldwide RFM Tournament!


$19.99 Each
Pinball 2000 Network card
Plenty in stock

New Replacement Pinball Boards

Available below are brand new replacement Pinball boards from Alltek Systems and some NOS boards.

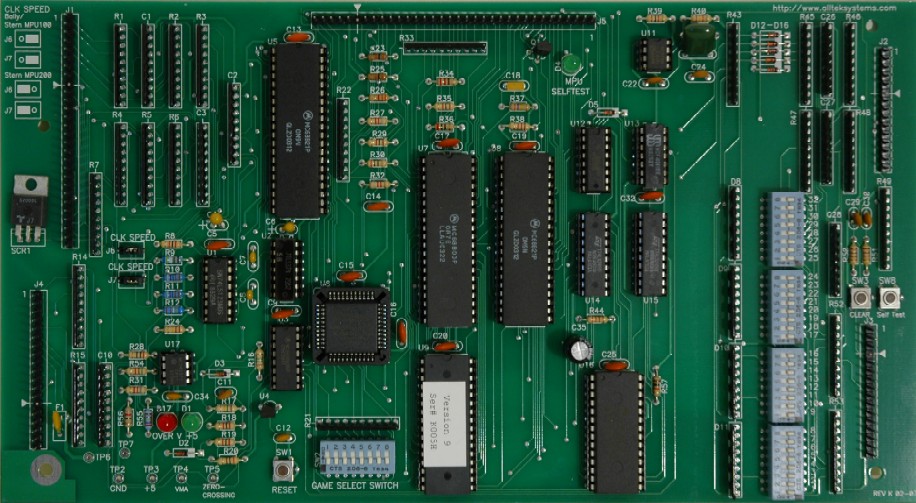

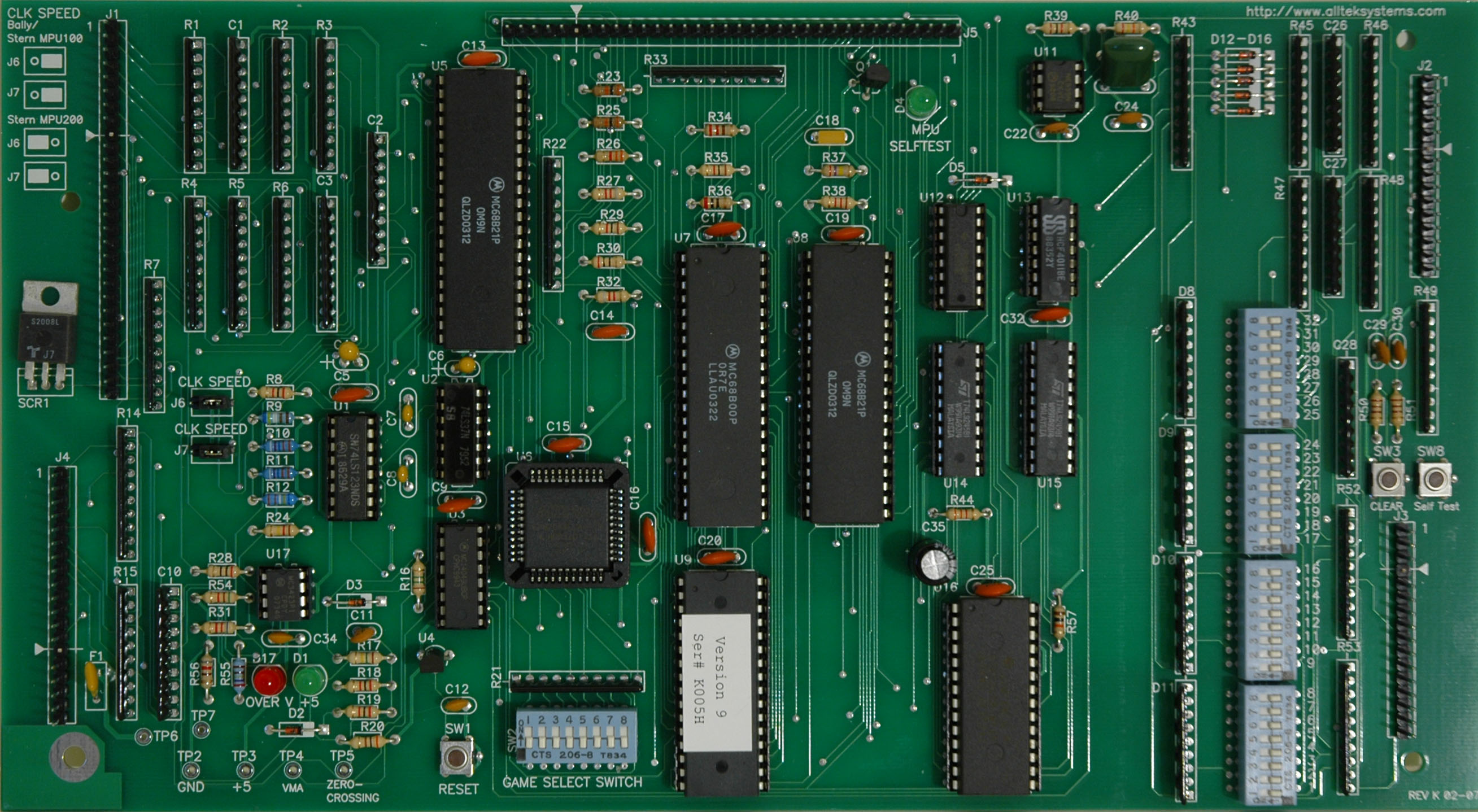

Alltek Ultimate MPU board

Direct replacement for Bally AS2518-17, AS2518-35, AS2518-133, and Stern MPU-100, and MPU-200.
Full warranty provided by the manufacturer

If you are wanting an MPU board with a more original look, please check out the DASH 35 MPU board.


----

$199.95
Alltek Ultimate MPU board



------------------------------------------------------------------------------------------------------


Alltek Ultimate Solenoid Driver board

Direct replacement for Bally AS2518-16, AS2518-22, AS2518-25 and Stern SDU-100.
Full warranty provided by the manufacturer


Click on Picture for a larger view

$149.95
Alltek Ultimate
Solenoid Driver Board



------------------------------------------------------------------------------------------------------


Alltek Ultimate LED & Lamp Driver board

Direct replacement for an AS-2518-14, AS-2518-23, and LDB-100.
This board allows you to install LEDs on older Bally/Stern games without messing with resistors.
Full warranty provided by the manufacturer


Click on Picture for a larger view

$119.95
Alltek Ultimate
LED & Lamp Driver board




------------------------------------------------------------------------------------------------------


Alltek Auxiliary LED & Lamp Driver Board

Direct replacement for an AS-2518-43.
This board allows you to install LEDs on older Bally/Stern games without messing with resistors.
Used in the following games: Black Pyramid, Centaur/Centaur II, Future Spa, Kings of Steel, KISS, Spy Hunter, X's & O's
Lifetime warranty provided by the manufacturer


Click on Picture for a larger view

$75.00
Alltek Auxiliary
LED & Lamp Driver board



------------------------------------------------------------------------------------------------------


Alltek Auxiliary LED & Lamp Driver Board

Direct replacement for an AS-2518-52.
This board allows you to install LEDs on older Bally/Stern games without messing with resistors.
Used in the following games: Eight Ball Deluxe (all versions), Elektra, Embryon, Fathom, Fireball II,
Flash Gordon, Medusa, Mr. & Ms Pacman, Space Invaders, Speakeasy, Vector, Xenon
Lifetime warranty provided by the manufacturer


Click on Picture for a larger view

$80.00
Alltek Auxiliary
LED & Lamp Driver board



------------------------------------------------------------------------------------------------------


Alltek Ultimate MPU Test/Diagnostics board

For use only with the Alltek Ultimate MPU board.
Full warranty provided by the manufacturer


Click on Picture for a larger view

$55.95
Alltek Ultimate
MPU test board



------------------------------------------------------------------------------------------------------

An Alternate new MPU board for those that want the look of an original


DASH 35 MPU board

Direct replacement for Bally AS2518-17, AS2518-35, AS2518-133, and Stern MPU-100, will not work for Stern MPU-200.
This is a faithful reproduction by Two Bit Score with many improvements over the original.
Stock is limited to a few on hand and will not be restocked, I purchased the remaining inventory.


Please note that this does not come fully populated, you will need the
5101, 6810 and game ROMS as well as adding a battery or NVRAM

Features and Improvements over the original Bally & Stern boards:

    All ICs are in machine sockets
    Jumperd for 2732 EPROMs for the most versatile configuration
    R11 is upgraded and elevated off the board
    Many other resistors are metal oxide 1%
    Holds true to the looks and design of an original MPU board
    Available in multiple battery and NVRAM options (Future)
    Available in multiple combinations of ICs and game ROMs (Future)


$239.95
DASH 35 MPU board



------------------------------------------------------------------------------------------------------

Brand *New* NOS DA-100 Six Digit Stern Score Display! Can be used in Bally
Original NOS (New Old Stock) Display board
Brand new NOS Stern DA-100 Six-digit Score displays, can be used in Bally games (Sub for AS-2518-21 and AS-2518-15). If in doubt, please ask. Will replace Four-digit Credit displays too. Buy 5 to replace all your displays in most games, listing is for ONE display only, showing more for clarity. These are brand new and the glass has no nipple, could also use the glass if removed for other display sets requiring no nipple. Will NOT work in games requiring 7 digits (Bally AS-2518-58 or Stern DA-300). Games Like Six Million Dollar Man require seven. Games such as Medusa and Vector require six.


$60.00
Stern DA-100 Six
Digit Display Board
(NOS)
(Out of stock)



------------------------------------------------------------------------------------------------------

------------------------------------------------------------------------------------------------------

Gottlieb System 1 Driver board
Original NOS (New Old Stock) Gottlieb driver board
No factory warranty provided as Gottlieb is no longer in business.
Boards are tested and confirmed good and I'm glad to help with any issues


$65.00
Sys1Drvr Gottlieb System 1
Driver Board
(NOS)
(Out of Stock 11/9/2020)



------------------------------------------------------------------------------------------------------

Bally 6803 MPU/Motherboard
Original NOS (New Old Stock) Bally MPU board
90 day DOA Warranty Provided by Big Daddy Enterprises
Used in the following games: Eight Ball Champ, Beat the Clock, Lady Luck, Motordome,
Strange Science, Hardbody, Special Force, Party Animal, Heavy Metal Meltdown,
Dungeons & Dragons, Escape from the Lost World, Blackwater 100, Truck Stop, Atlantis.


Click on Picture for a larger view

$199.00
Bally 6803 Motherboard
(NOS)
Out of stock



------------------------------------------------------------------------------------------------------



New Bally -54 Power Supply board

This is a new reproduction -54 power supply board equivalent to AS-2518-54 used in the following games:

Black Pyramid, BMX, Centaur & Centaur II, Cybernaut, Eight Ball Deluxe including LE, Elektra, Embryon,
Fathom, Fireball II & Classic, Flash Gordon, Goldball, Kings of Steel, Medusa, Mr. and Mrs. Pac Man,
Rapid Fire, Speakeasy, Spectrum, SpyHunter, Vector, Xenon, X's & O's,
Better design has LED indicators for fuses, split GI so less stress on games, and better components all around.
Cement resistors and bridges are elevated for running cooler. Fuses and test points are clearly labeled


$109.95
Bally -54 Power Supply
Board

(Out of Stock, order
Rottendog board instead)



------------------------------------------------------------------------------------------------------

Bally Centaur Say It Again replacement board.

Perfect replacement or back-up for your 'Say it Again Board'.
This board creates the reverb for Centaur speech with variable delay & feedback.
Centaur was the only game that used this, however any game with a Squawk & Talk board
AS-2518-61b Rev D with the 10 pin connector can utilize it.
Jumpers FF must be removed & you will need additional cabling made.

Professionally Manufactured Boards - Hand Soldered in USA.
Removable Socketted Chips - Plug and Play with Existing Brackets and Standoffs
Board support & warranty covered by the manufacturer


$99.00
Say It Again Board
AS-2518-81



------------------------------------------------------------------------------------------------------

Inkochnito's Bridge Board.

Page has moved here



Used Pinball Boards

This is a work in progress. Because of their nature, most boards in this area are sold AS-IS with no warranty.
Tested boards are thoroughly play tested, not just quickly fixed and set on a shelf.
Parts boards are sold for parts or repair.



Williams Sys 3, 4, 6 and 6A Six digit display board
Plug and play. Part numbers 1B-2001-132-1 or -2
Sample board shown. All boards have nice crisp digits with no burn.


$60.00
Williams System 3-6A
Six Digit display board

Nice crisp & tested
Limited Stock



------------------------------------------------------------------------------------------------------

Williams Sys 3, 4, 6 and 6A Blank Six digit display board
Part numbers 1B-2001-132-1 or -2

Blank boards for you to add your own glass.
If you have a Bally glass, it will work on these boards in your Williams games.
You'll have to remove the leads from the holes or available "clean" for a few bucks more.
Sample Boards shown.


$3.00
Williams System 3-6A
Six Digit Display Board
Blank

$6.00
Williams System 3-6A
Six Digit Display Board
Blank
& Cleaned



------------------------------------------------------------------------------------------------------



Thanks for your business!
