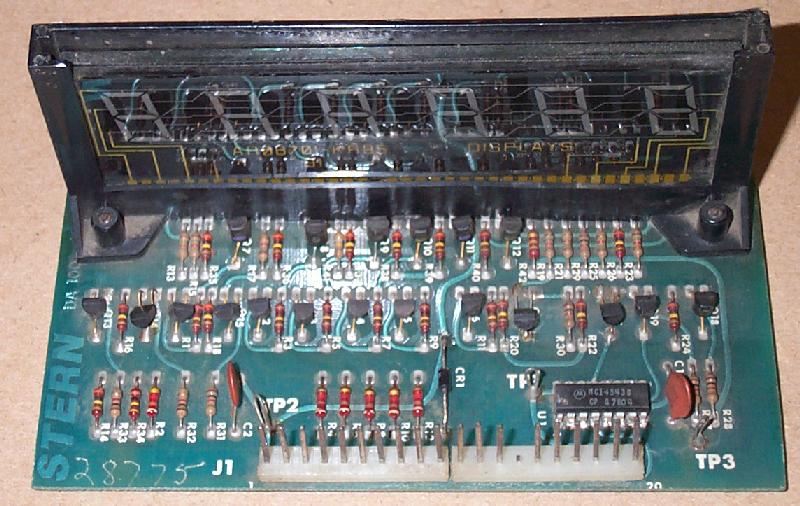

Bally/Stern 6-Digit Display Driver Kit

Parts shown in picture may be replaced with a compatible substitute

There are many different types of Stern displays floating around, and I've only seen a couple of them, and neither were marked very well with part numbers. So, if your Stern display looks like this or this, then I can assure you the parts in this kit are the proper components. If you have a different display, then I can not promise anything and you buy this kit at your own risk. They probably are the right components, but since I've never looked at any other Stern displays, I can not say for sure.

Price: $7.00 - buy 4 kits and get the 5th kit free!

• 1 ea. 4543 BCD-to-Seven Segment decoder IC
• 15 ea. MPS-A42 Transistors
• 7 ea. 2N5401 Transistors
• 8 ea. 100K Ohm, 1/2 Watt Resistors
• 1 ea. 16-pin DIP Machined Socket (for decoder)

$7.00 each 6-Digit Display Kit	$28.00 each 5-Pack

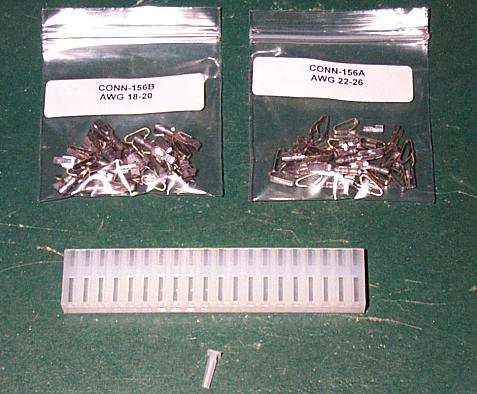

Bally/Stern Display Driver Connector Kit

Parts shown in picture may be replaced with a compatible substitute
If your Stern display driver has a 20-pin row of header pins, then here's a connector kit with everything you need to repair your display's female connectors.

Price: $6.00 each, or $27.00 for five kits

• 20 ea. 0.156" Standard Connector Pins for AWG 18-20
• 20 ea. 0.156" Standard Connector Pins for AWG 22-26
• 1 ea. 0.156" 20-Circuit Connector Housing
• 1 ea. 0.156" Connector Key

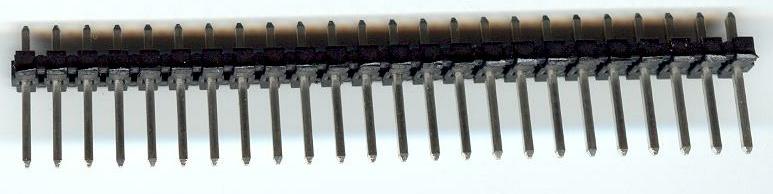

Add a 24-pin row of 0.156" header pins for $2.00 each.

$6.00 each Display Driver Connector Kit	$27.00 each Pack of 5 Kits	$2.00 .156 " Header Pins Row of 24

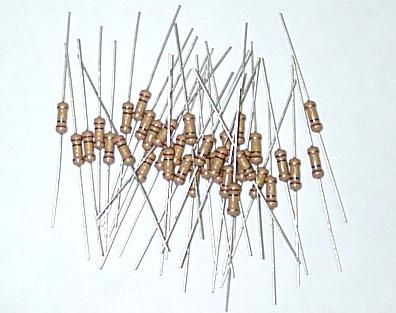

Bally/Stern Display Driver Resistor Kit

Parts shown in picture may be replaced with a compatible substitute
If your Stern display driver has 100K Ohm, 1/4 Watt resistors for R1, 3, 5, 7, 9, and R11, here's a kit of 1/2 Watt replacements. Often the 1/4 Watt size is just not enough and they get stressed and damaged. Replacing them with 1/2 Watters will make your displays better and may just solve your problems. Even if your displays are working fine, it's still a good idea to upgrade them to the 1/2 Watt size.

This kit contains 40 resistors, enough to upgrade all 5 of your displays, or stock up and buy 100.

Price: $2.00, or 100 resistors for $4.00

• 40 ea. 100K Ohm, 1/2 Watt Resistors

$2.00 each Display Resistors Pack of 40	$4.00 each Display Resistors Pack of 100

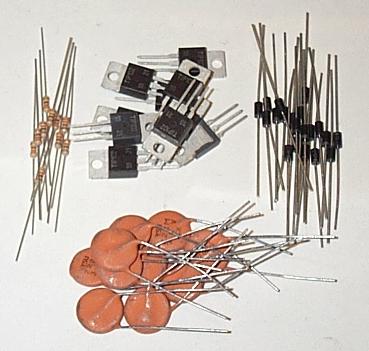

Bally/Stern Solenoid Driver Kit #1

Parts shown in picture may be replaced with a compatible substitute
Includes all the parts needed (less integrated circuits) to repair up to 10 solenoid driver circuits on your Stern SDU Solenoid Driver/Voltage Regulator Module. I also include an extra 10 rectifiers just in case you need extras for the coils.

Price: $10.00 each

• 10 ea. TIP102 Driver Transistors
• 20 ea. 1N4004 Silicon Rectifier
• 10 ea. 330 Ohm, 1/4 Watt Resistor
• 10 ea. 0.002 uF, 3000 Volt Disk Capacitor

Supersize this kit to include enough parts for 19 circuits (including the 10 extra diodes) for only $6.00 more!

$10.00 each Solenoid Driver Kit #1	$16.00 each Solenoid Driver Kit #1 Supersized

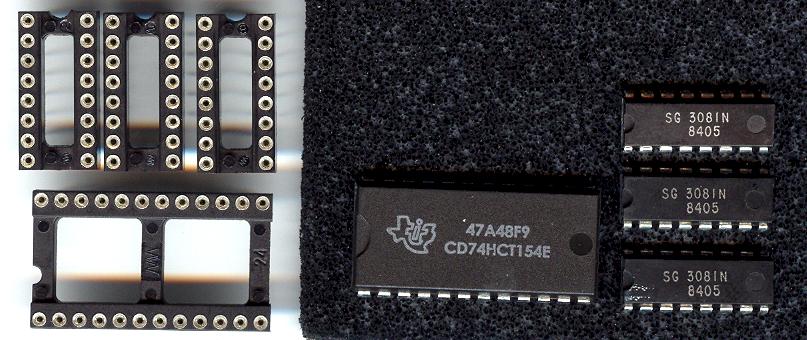

Bally/Stern Solenoid Driver Kit #2 (IC Kit)

Parts shown in picture may be replaced with a compatible substitute
Includes the decoder and transistor array integrated circuits (and sockets) used on the Stern SDU Solenoid Driver/Voltage Regulator Module.

• 1 ea. 74L154 4-to-16 Decoder
• 3 ea. CA3081 Transistor Array IC
• 1 ea. 24 Pin Machined DIP Socket
• 3 ea. 16 Pin Machined DIP Socket

$16.50 each Solenoid Driver Kit #2 (IC Kit)

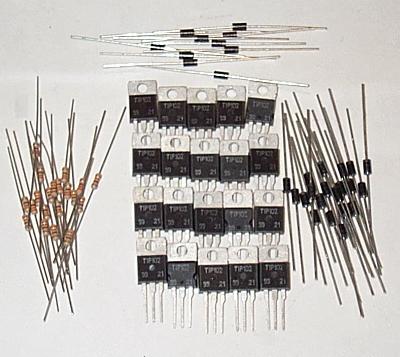

Bally/Stern Solenoid Driver Kit #3

Parts shown in picture may be replaced with a compatible substitute
Some folks don't need the 0.002uF, 3KV capacitors for their Stern SDU solenoid driver, and unless there's obvious signs of stress, or they're swollen or missing, you probably don't need to replace them. So here's another kit with plenty of driver transistors and the associated resistors and diodes, plus an additional 10 diodes for coils and such, but no capacitors.

• 20 ea. TIP102 Driver Transistors
• 30 ea. 1N4004 Silicon Rectifier
• 20 ea. 330 Ohm, 1/4 Watt Resistor

$14.00 each Solenoid Driver Kit #3

• 10 ea. TIP102 Driver Transistors
• 20 ea. 1N4004 Silicon Rectifier
• 10 ea. 330 Ohm, 1/4 watt Resistor
• 10 ea. 0.002 uF, 3000 Volt Disk Capacitor
• 1 ea. 74L154 4-to-16 Decoder
• 3 ea. CA3081 Transistor Array IC
• 1 ea. 24 Pin Machined DIP Socket
• 3 ea. 16 Pin Machined DIP Socket

Supersize this combo kit for only $6.00 more!

$23.50 each Solenoid Driver Combo #1 (Kits #1 & #2)	$29.50 each Solenoid Driver Combo #1 Supersized

• 20 ea. TIP102 Driver Transistors
• 30 ea. 1N4004 Silicon Rectifier
• 20 ea. 330 Ohm, 1/4 watt Resistor
• 1 ea. 74L154 4-to-16 Decoder
• 3 ea. CA3081 Transistor Array IC
• 1 ea. 24 Pin Machined DIP Socket
• 3 ea. 16 Pin Machined DIP Socket

$27.50 each Solenoid Driver Combo #2 (Kits #2 & #3)

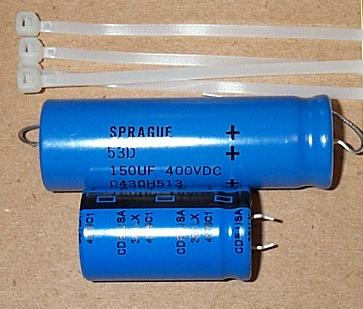

Bally/Stern Regulator Capacitor Kit

Parts shown in picture may be replaced with a compatible substitute

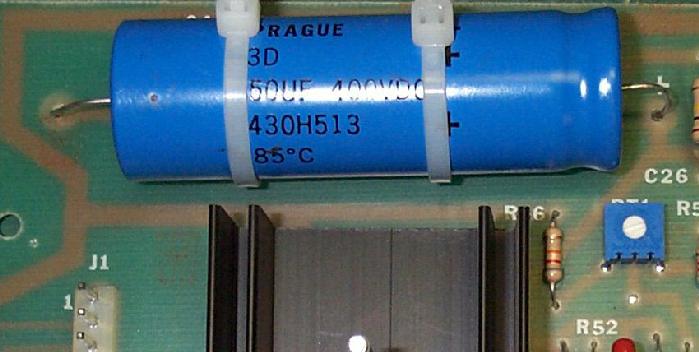

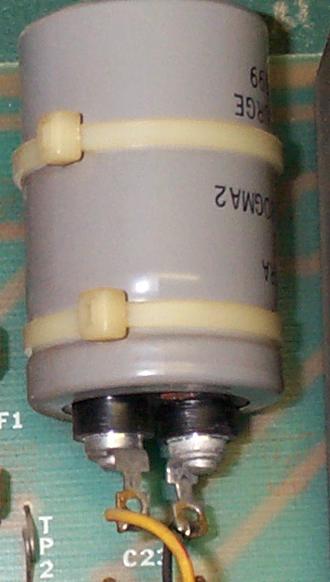

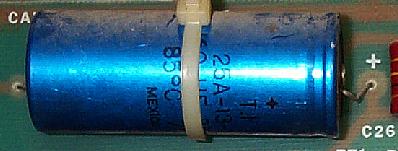

If the filter capacitors on your Stern Regulator Board look like this and this, then it's probably time for some new ones. Make them look like this and this,

This kit includes brand new, quality Sprague and Cornel Dubilier filter caps, and some
nylon zip strips too.

Price: $16.00 each

• 1 ea. 15,000uF, 25 Volt Electrolytic Capacitor (Radial Snap-in)
• 1 ea. 150uF, 400 Volt Electrolytic Capacitor (Axial)
• 4 ea. Nylon zip strips

$16.00 each Regulator Capacitor Kit

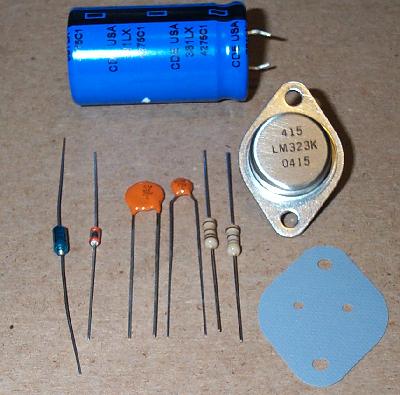

Stern 5-Volt Regulator Kit #1

Parts shown in picture may be replaced with a compatible substitute

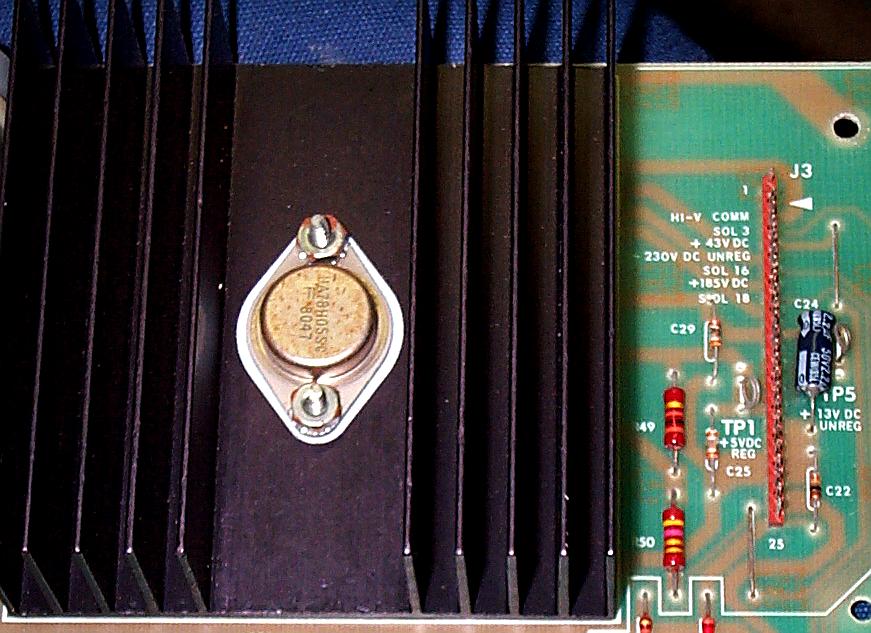

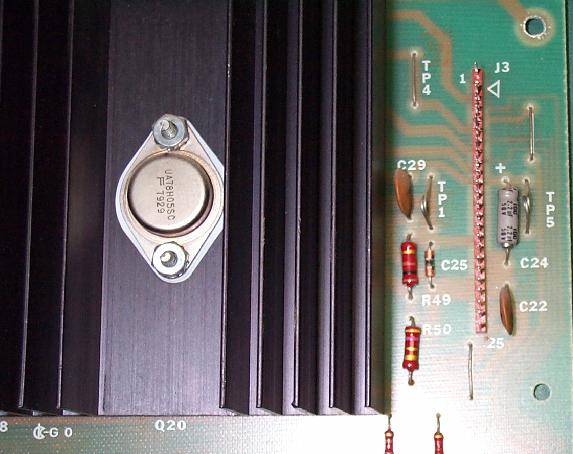

I've seen a couple different Stern 5-Volt regulators so if yours looks like this, then this is the kit for you. The thing to look for is two disk capacitors for C22 and C29, and an axial ceramic capacitor for C25. If yours does not look like this, then try the 5-Volt Regulator Kit #2, below.

Price: $14.00 each

• 1 ea. 15,000uF, 25 Volt Electrolytic Capacitor
• 1 ea. LM323K Regulator
• 1 ea. 2.2uF, 20 Volt Tantalum Capacitor to replace C24
• 1 ea. 0.1uF 25V Ceramic Axial Capacitor
• 1 ea. 0.1uF 25V Ceramic Disk Capacitor
• 1 ea. 0.01uF, 25V Ceramic Disk Capacitor
• 1 ea. 4.7 Ohm, 1/2 Watt Resistor
• 1 ea. 100 Ohm, 1/2 Watt Resistor
• 1 ea. Thermally Conductive Insulator for TO-3 devices
• 2 ea. Wire Ties to strap down the filter capacitor

Here's the cheat-sheet for this kit: stern-5vreg1.pdf

$14.00 each 5-Volt Regulator Kit #1

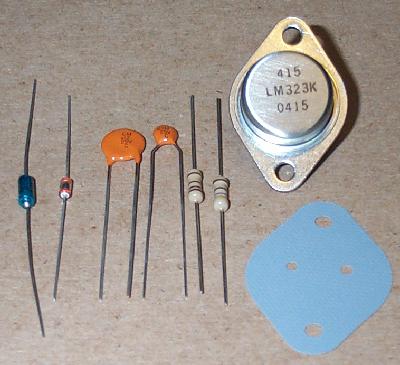

Stern 5-Volt Regulator Half-Kit #1

Parts shown in picture may be replaced with a compatible substitute
Provides everything from the kit above, except for the filter capacitor.

I've seen a couple different Stern 5-Volt regulators so if yours looks like this, then this is the kit for you. The thing to look for is two disk capacitors for C22 and C29, and an axial ceramic capacitor for C25. If yours does not look like this, then try the 5-Volt Regulator #2 Half Kit, below.

Price: $9.00 each

• 1 ea. LM323K Regulator
• 1 ea. 2.2uF, 20 Volt Tantalum Capacitor to replace C24
• 1 ea. 0.1uF 25V Ceramic Axial Capacitor
• 1 ea. 0.1uF 25V Ceramic Disk Capacitor
• 1 ea. 0.01uF, 25V Ceramic Disk Capacitor
• 1 ea. 4.7 Ohm, 1/2 Watt Resistor
• 1 ea. 100 Ohm, 1/2 Watt Resistor
• 1 ea. Thermally Conductive Insulator for TO-3 devices

Here's the cheat-sheet for this kit: stern-5vreg1.pdf

$9.00 each 5-Volt Regulator Half-Kit #1

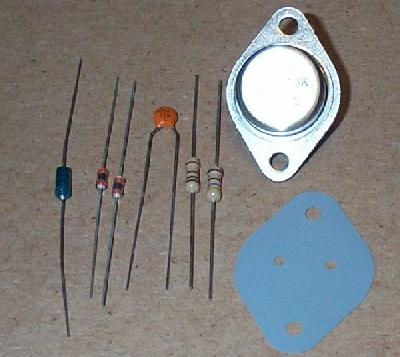

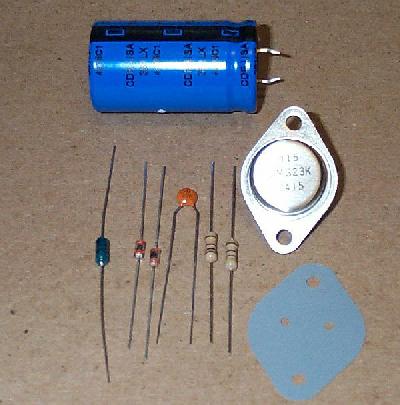

Stern 5-Volt Regulator Kit #2

Parts shown in picture may be replaced with a compatible substitute

I've seen a couple different Stern 5-Volt regulators so if yours looks like this, then this is the kit for you. The thing to look for is 3 axial ceramic capacitor for C22, C25 and C29, and all the additional labeling on the circuit board. If yours does not look like this, then try the 5-Volt Regulator Kit #1, above.

Price: $14.00 each

• 1 ea. 15,000uF, 25 Volt Electrolytic Capacitor
• 1 ea. LM323K Regulator
• 1 ea. 2.2uF, 20 Volt Tantalum Capacitor to replace C24
• 2 ea. 0.1uF 25V Ceramic Axial Capacitor
• 1 ea. 0.01uF, 25V Ceramic Disk Capacitor
• 1 ea. 4.7 Ohm, 1/2 Watt Resistor
• 1 ea. 100 Ohm, 1/2 Watt Resistor
• 1 ea. Thermally Conductive Insulator for TO-3 devices
• 2 ea. Wire Ties to strap down the filter capacitor

Here's the cheat-sheet for this kit: stern-5vreg2.pdf

$14.00 each 5-Volt Regulator Kit #2

Stern 5-Volt Regulator Half-Kit #2

Parts shown in picture may be replaced with a compatible substitute
Provides everything from the kit above, except for the filter capacitor.

I've seen a couple different Stern 5-Volt regulators so if yours looks like this, then this is the kit for you. The thing to look for is 3 axial ceramic capacitor for C22, C25 and C29, and all the additional labeling on the circuit board. If yours does not look like this, then try the 5-Volt Regulator Half-Kit #1, above.

Price: $9.00 each

• 1 ea. LM323K Regulator
• 1 ea. 2.2uF, 20 Volt Tantalum Capacitor to replace C24
• 2 ea. 0.1uF 25V Ceramic Axial Capacitor
• 1 ea. 0.01uF, 25V Ceramic Disk Capacitor
• 1 ea. 4.7 Ohm, 1/2 Watt Resistor
• 1 ea. 100 Ohm, 1/2 Watt Resistor
• 1 ea. Thermally Conductive Insulator for TO-3 devices

Here's the cheat-sheet for this kit: stern-5vreg2.pdf

$9.00 each 5-Volt Regulator Half-Kit #2

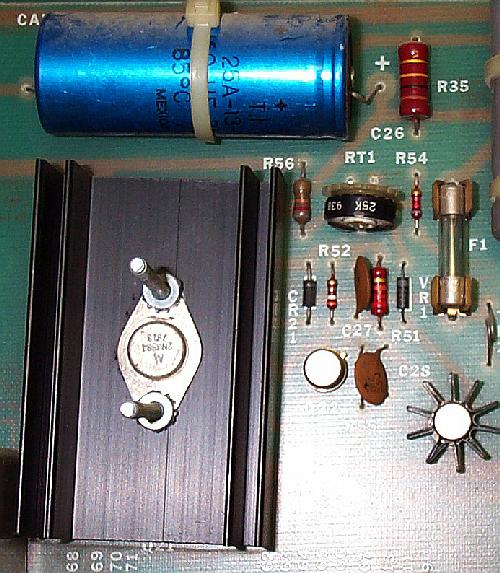

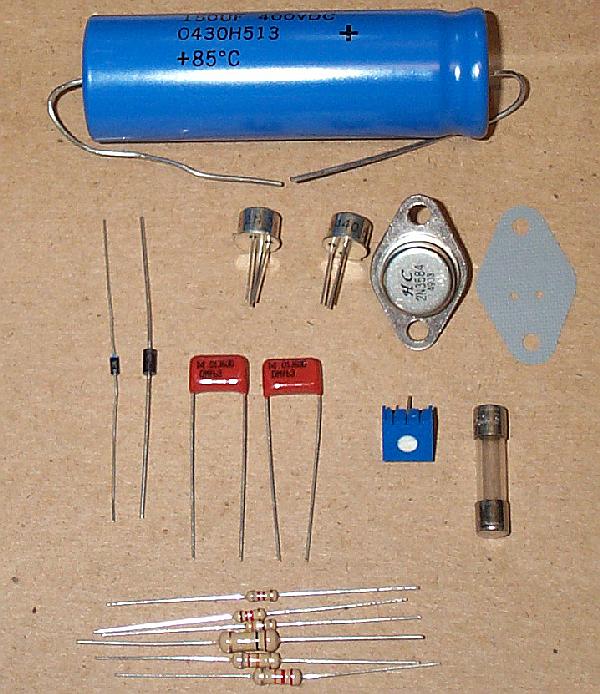

Stern High Voltage Regulator Kit #1

Parts shown in picture may be replaced with a compatible substitute

I've seen a couple different Stern High Voltage regulators so if yours looks like this, then this is the kit for you. The thing to look for is a fuse, and only one 1N4004 diode (CR21) If yours does not look like this, then try the High Volt Regulator Kit #2 below.

You may purchase this kit with or without a fuse. Also, if you want a fuse, you can get it with either the original 8AG fuse, or if your board has been modified to hold standard size fuses, you can get it with a 3AG fuse.

• 2 ea. 2N3440 Transistor
• 1 ea. 2N3584 Transistor
• 2 ea. 0.01uF 630V Metal-Polyester Capacitor
• 1 ea. 150uF, 400VDC Electrolytic Capacitor
• 1 ea. 1N5275A Zener Diode (NTE equivalent)
• 1 ea. 1N4004 Rectifier
• 1 ea. 3/16 Amp Fuse (8AG or 3AG - your choice)
• 1 ea. 390 Ohm, 1/4 Watt Resistor
• 1 ea. 1.2K Ohm, 1/4 Watt Resistor
• 1 ea. 8.2K Ohm, 1/4 Watt Resistor
• 1 ea. 22K Ohm, 1/2 Watt Resistor
• 1 ea. 82K Ohm, 1/2 Watt Resistor
• 1 ea. 100K Ohm, 1 Watt Resistor
• 1 ea. 25K Ohm, 1/2 Watt Trimmer Pot
• 1 ea. Thermally Conductive Insulator for TO-66 Devices
• 2 ea. Nylon Wire Ties to strap down the filter capacitor

Here's the cheat-sheet for this kit: stern-hvreg1.pdf

$25.00 Each HV Regulator Kit #1 with original 8AG 3/16 Amp Fuse	$24.50 each HV Regulator Kit #1 with longer 3AG 3/16 Amp Fuse	$23.00 each HV Regulator Kit #1 with No Fuse	$1.00 extra TO-39 Heatsink

TOP  BOTTOM

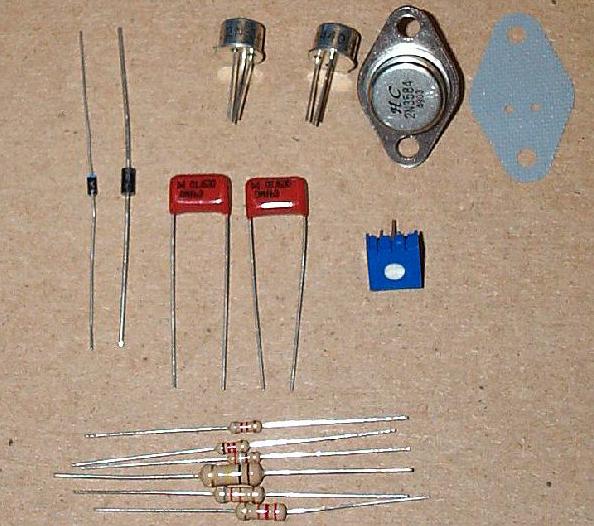

Stern High Voltage Regulator Half-Kit #1

Parts shown in picture may be replaced with a compatible substitute

Contains everything in the kit above, except for the fuse and the filter capacitor.

I've seen a couple different Stern High Voltage regulators so if yours looks like this, then this is the kit for you. The thing to look for is a fuse, and only one 1N4004 diode (CR21) If yours does not look like this, then try the High Volt Regulator Half-Kit #2 below.

• 2 ea. 2N3440 Transistor
• 1 ea. 2N3584 Transistor
• 2 ea. 0.01uF 630V Metal-Polyester Capacitor
• 1 ea. 1N5275A Zener Diode (NTE equivalent)
• 1 ea. 1N4004 Rectifier
• 1 ea. 390 Ohm, 1/4 Watt Resistor
• 1 ea. 1.2K Ohm, 1/4 Watt Resistor
• 1 ea. 8.2K Ohm, 1/4 Watt Resistor
• 1 ea. 22K Ohm, 1/2 Watt Resistor
• 1 ea. 82K Ohm, 1/2 Watt Resistor
• 1 ea. 100K Ohm, 1 Watt Resistor
• 1 ea. 25K Ohm, 1/2 Watt Trimmer Pot
• 1 ea. Thermally Conductive Insulator for TO-66 Devices

Here's the cheat-sheet for this kit: stern-hvreg1.pdf

$15.00 Each HV Regulator Half-Kit #1	$1.00 extra TO-39 Heatsink

TOP  BOTTOM

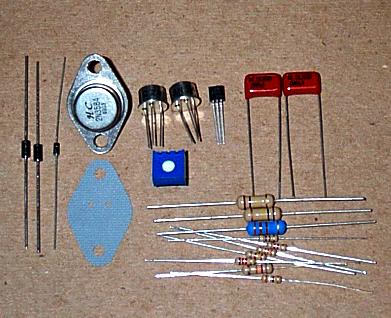

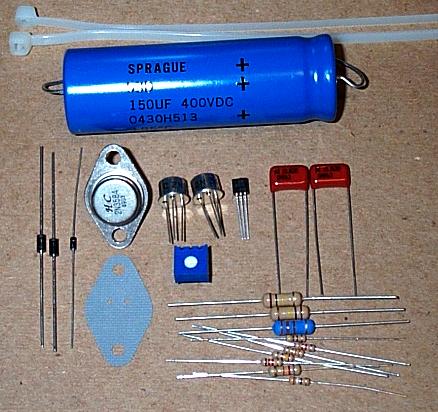

Stern High Voltage Regulator Kit #2

Parts shown in picture may be replaced with a compatible substitute

I've seen a couple different Stern High Voltage regulators so if yours looks like this, then this is the kit for you. The thing to look for is no fuse, and extra transistor (Q24), two 1N4004 diodes (CR21, 22), and all the extra writing on the circuit board. If yours does not look like this, then try the High Volt Regulator Kit #1 above.

• 2 ea. 2N3440 Transistor
• 1 ea. 2N3584 Transistor
• 1 ea. 2N3904 Transistor
• 2 ea. 0.01uF 630V Metal-Polyester Capacitor
• 1 ea. 150uF, 400VDC Electrolytic Capacitor
• 1 ea. 1N5275A Zener Diode (NTE equivalent)
• 2 ea. 1N4004 Rectifier
• 1 ea. 3.3 Ohm, 1/4 Watt Resistor
• 1 ea. 390 Ohm, 1/4 Watt Resistor
• 1 ea. 470 Ohm, 1/4 Watt Resistor
• 1 ea. 1.2K Ohm, 1/4 Watt Resistor
• 1 ea. 2.4K Ohm, 1/4 Watt Resistor
• 1 ea. 8.2K Ohm, 1/4 Watt Resistor
• 1 ea. 82K Ohm, 1/2 Watt Resistor
• 2 ea. 100K Ohm, 1 Watt Resistor
• 1 ea. 33K Ohm, 2 Watt Resistor
• 1 ea. 25K Ohm, 1/2 Watt Trimmer Pot
• 1 ea. Thermally Conductive Insulator for TO-66 Devices
• 2 ea. Nylon Wire Ties to strap down the filter capacitor

Here's the cheat-sheet for this kit: stern-hvreg2.pdf

$24.50 Each HV Regulator Kit #2	$1.00 extra TO-39 Heatsink

TOP  BOTTOM

Stern High Voltage Regulator Half-Kit #2

Parts shown in picture may be replaced with a compatible substitute

Contains everything in the kit above, except for the filter capacitor.

I've seen a couple different Stern High Voltage regulators so if yours looks like this, then this is the kit for you. The thing to look for is no fuse, and extra transistor (Q24), two 1N4004 diodes (CR21, 22), and all the extra writing on the circuit board. If yours does not look like this, then try the High Volt Regulator Half-Kit #1 above.

• 2 ea. 2N3440 Transistor
• 1 ea. 2N3584 Transistor
• 1 ea. 2N3904 Transistor
• 2 ea. 0.01uF 630V Metal-Polyester Capacitor
• 1 ea. 1N5275A Zener Diode (NTE equivalent)
• 2 ea. 1N4004 Rectifier
• 1 ea. 3.3 Ohm, 1/4 Watt Resistor
• 1 ea. 390 Ohm, 1/4 Watt Resistor
• 1 ea. 470 Ohm, 1/4 Watt Resistor
• 1 ea. 1.2K Ohm, 1/4 Watt Resistor
• 1 ea. 2.4K Ohm, 1/4 Watt Resistor
• 1 ea. 8.2K Ohm, 1/4 Watt Resistor
• 1 ea. 82K Ohm, 1/2 Watt Resistor
• 2 ea. 100K Ohm, 1 Watt Resistor
• 1 ea. 33K Ohm, 2 Watt Resistor
• 1 ea. 25K Ohm, 1/2 Watt Trimmer Pot
• 1 ea. Thermally Conductive Insulator for TO-66 Devices

Here's the cheat-sheet for this kit: stern-hvreg2.pdf

$15.00 Each HV Regulator Half-Kit #2	$1.00 extra TO-39 Heatsink

TOP  BOTTOM
